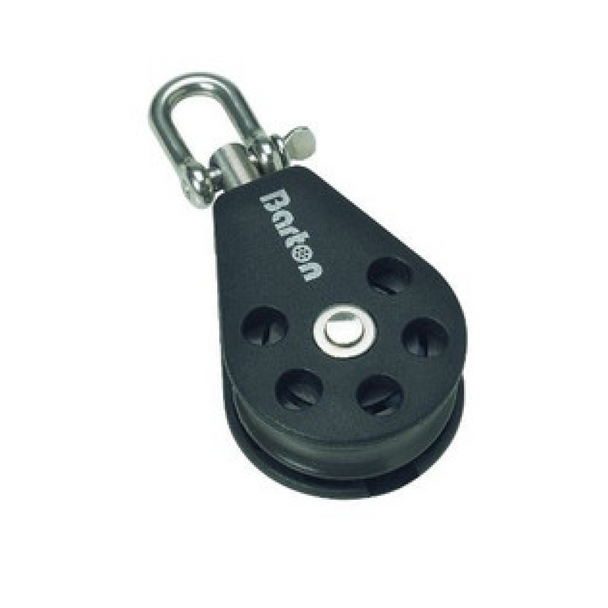

Barton Ball Bearing Size 2 Single Swivel Block

The size 2 Barton Blocks take the same size rope as the size 1 blocks, but they come with a higher breaking strain of 370kg.

A strong, lightweight range of blocks suitable for use on dinghies and dayboats or wherever a powerful, compact multi-purpose tackle is required. A comprehensive range of multiple sheave options, together with fiddle and camcleat blocks, allows for powerful, lightweight tackles to be achieved.

The 35mm sheave Size 2 block range provides high performance and load values in a variety of assemblies. The range has an internal stainless steel frame and precision components with plain or ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

The Barton Size 2 Ball Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in plain bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Specifications

• Weight: 47 g
• Dimensions: 77 × 38 × 24 mm
• Size: 2 (35mm)
• Block Type: Swivel
• Sheaves: Single
• Bearing Type: Ball Bearing
• Sheave Size: 35 × 11 mm (1 3/8" × 15/32")
• Maximum Rope Diameter: 8 mm (5/16")
• Brand: Barton
• Load Ratings
• Safe Working Load (SWL): 370 kg (815 lbs)
• Break Load: 740 kg (1630 lbs)
