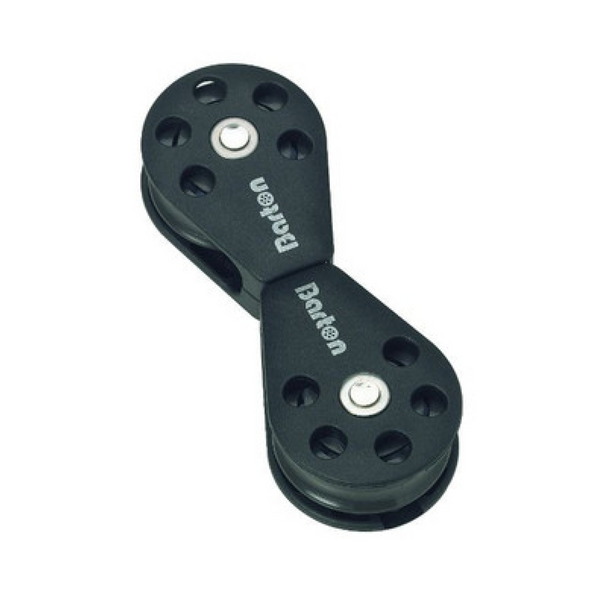

Barton Size 2 Back To Back Block

The Barton Size 2 Back To Back Block is designed for small to mid-range vessels and comes with nylon sheaves suitable for all ropes, including braided dyneema. Newly designed for 2019 onwards, the Barton Blocks are known as great value for money and practical for many applications. For racing applications, consider getting the ball bearing versions.

Barton Size 2 Blocks suit mainsheets (camcleat version required) for smaller dinghies, including Laser, Topper, and Optimist boats.

The 35mm sheave Size 2 block range provides high performance and load values in a variety of assemblies. The range has an internal stainless steel frame and precision components with plain or ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Specifications

• Weight: 70 g
• Dimensions: 65 × 47 × 44 mm
• Size: 1 (30 mm)
• Block Type: Upright
• Number of Sheaves: Single
• Bearing Type: Plain
• Sheave Size: 30 mm × 12 mm (1 3/16" × 15/32")
• Max Rope Diameter: 8 mm (5/16")
• SWL (Safe Working Load): 355 kg (782 lbs)
• Break Load: 710 kg (1565 lbs)
• Max Rolling Load (Ball Bearing Blocks): 245 kg (540 lbs)
• Brand: Barton

Download

Size 2 Block Range
