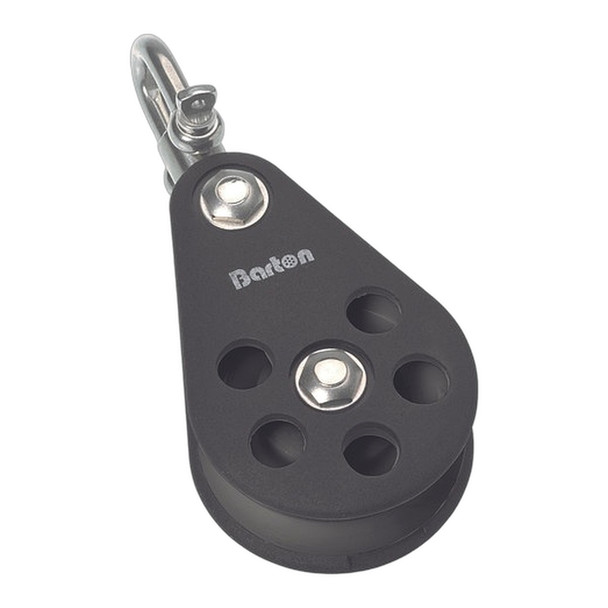

Barton Size 5 Single Block - Swivel Shackle N05130

The Barton Size 5 Single Block - Plain Bearing - Swivel Shackle is designed for larger cruising and racing yachts with nylon sheaves suitable for all ropes, including braided dyneema. Newly designed for 2019 onwards, the Barton Blocks are known as great value for money and practical for many applications. For racing applications, consider getting the ball bearing versions.

Barton Size 5 Blocks are high-load cruiser blocks of rugged construction, featuring injection moulded side plates with all load-carrying components from 316 grade stainless steel. Side plates are through-bolted and riveted for added strength and security.

Specifications

• Brand: Barton
• Weight: 192 g
• Dimensions: 128 × 58 × 37 mm
• Size: 5 (54 mm)
• Block Type: Swivel
• Number of Sheaves: Single
• Bearing Type: Plain
• Sheave Size: 54 mm × 17 mm (2 1/8" × 5/8")
• Maximum Rope Diameter: 12 mm (7/16")
• Safe Working Load (SWL): 750 kg (1,650 lbs)
• Breaking Load: 1,500 kg (3,300 lbs)
• Max Rolling Load (Ball Bearing Blocks): 525 kg (1,157 lbs)
