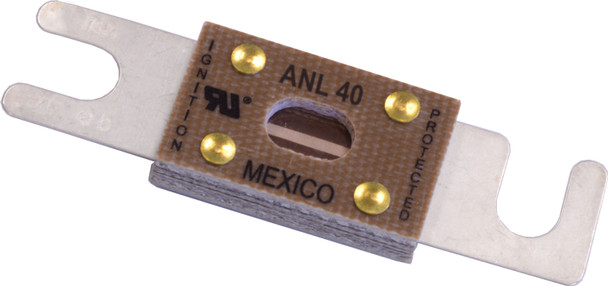

Blue Sea ANL Fuse 40A

The Blue Sea Systems ANL Fuse 40A (Model 5165) is a high-quality, ignition-protected fuse designed for reliable circuit protection in marine, automotive, and RV applications. Engineered to meet stringent safety standards, this fuse is ideal for use with Blue Sea Systems ANL Fuse Blocks

Features

• Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
• Silver-plated connector blades for corrosion resistance
• Visible indication of blown condition
• 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
• For use with Blue Sea Systems' ANL Fuse Blocks

Specifications

• Amperage: 40A
• Ignition Protected: Yes
• Maximum Voltage: 32V DC
• Interrupt Capacity: 6000A @ 32V DC
• Weight: 0.05lb (0.02 kg)

Works with

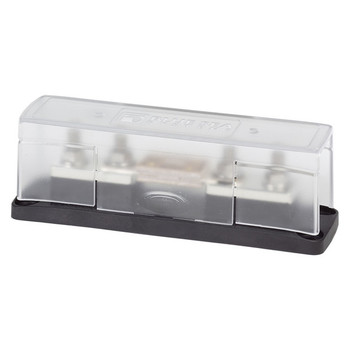

All ANL Fuse Blocks

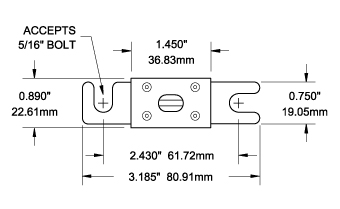

Dimension Drawing

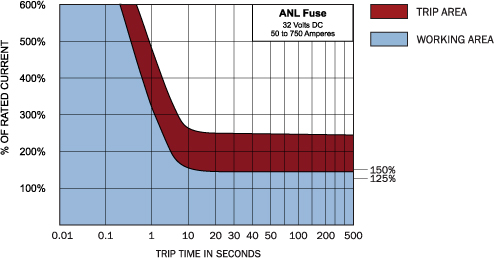

Blow Delay Curve
