Description
Common 150A BusBar - Four 1/4"-20 Studs
Features
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
Specifications
- Maximum Voltage: 300V AC, 48V DC
- Number of Terminal Studs: 4
- Terminal Type: 1/4" Stud
- Continuous Rating: 130A AC 150A DC
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Stud Torque: 60 in-lb (6.78 Nm)
- Weight: 0.35lb (0.16 kg)

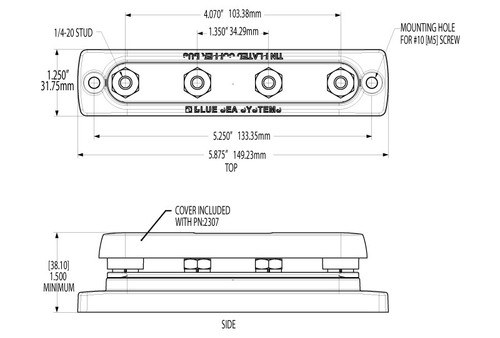

Dimension Drawing
