Description
Blue Sea DC Ammeter - 50-0-50A with Shunt
Features
- Meters read both discharge and charge current
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes appropriate DC shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
Specifications
- Meter: Current
- Face Size: 2.75in (69.85 mm)
- Function: 50 to 50A
- Backlighting Amperage: 16mA @ 12V DC, 20mA @ 24V DC
- Meter Current: 1mA at full scale
- Shunt Type: External 50mV@full scale
- Weight: 0.54lb (0.24 kg)
- Weight: 0.58lb (0.26 kg)

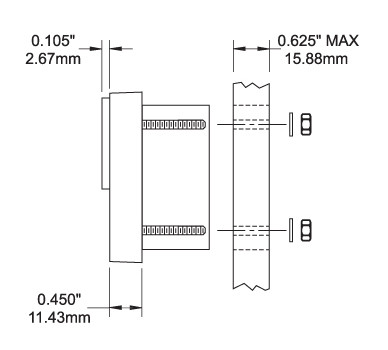

Mounting Diagram (Surface mount)

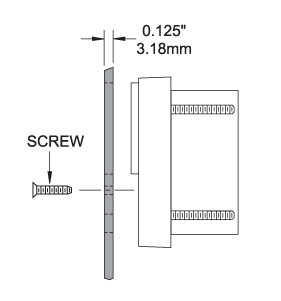

Mounting Diagram (Panel mount)
Technical File
