Description
DC DIN Ammeter - 0-25A with Shunt
Features
- Standard European 72mm design
- White matte dial with black printed scale and knife-edge pointer
- Backlit meter face (separate 12 or 24V DC backlight connections)
- Terminal cover included to prevent accidental short circuit
- Includes appropriate external DC shunt, when required
Specifications
- Meter: Current
- Function: 0-25A
- Backlighting Amperage: 16mA @ 12V DC, 20mA @ 24V DC
- Connection: 2 wire - no other power required
- Meter Current: 1mA at full scale
- Shunt Type: Internal
- Weight: 0.33lb (0.15 kg)

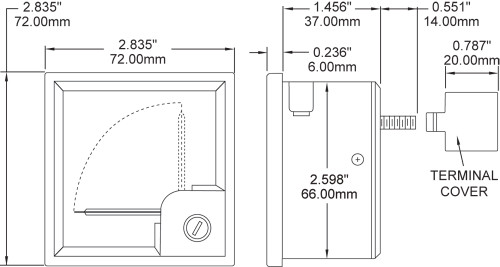

Dimension Drawing
