Description
DualBus 100A BusBar
Feature
- Combines negative and positive buses on one block
Specifications
- Maximum Voltage: 300V AC, 48V DC
- Number of Screw Terminals: 10 per bus
- Terminal Type: 8-32 Screw
- Continuous Rating: 100A
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Screw Terminal Torque: 15 in-lb (1.69 Nm)
- Height: 5⁄8 in (15.88 mm)
- Weight: 0.27lb (0.12 kg)
- Weight: 0.30lb (0.14 kg)

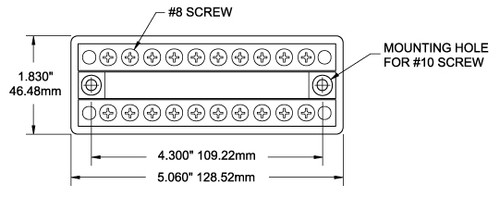

Dimension Drawing
Downloads
