Description

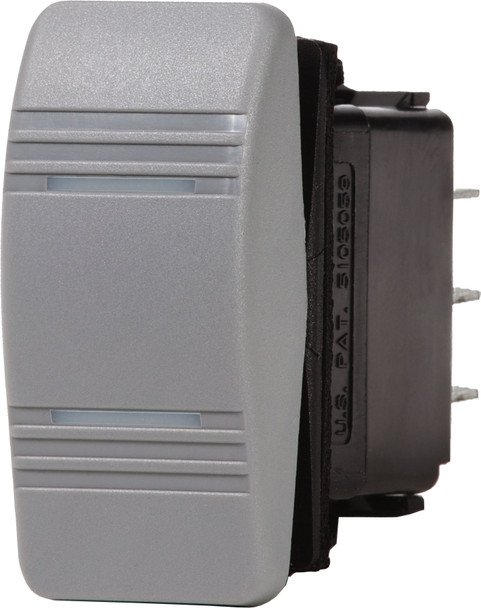

The Blue Sea Contura SPDT (ON)-OFF-ON Switch with gray actuator is a rugged, marine-grade switch designed for reliable circuit control in demanding onboard environments. Engineered for use with Blue Sea Systems water-resistant panels, this switch is ideal for applications such as bilge pumps, auxiliary systems, or other DC circuits where ignition protection and durability are required
Features
- Vibration, shock, thermo shock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
Specifications
- Action: ON-OFF-ON
- Pole / Throw: SPDT
- Actuator Color: Gray - Contura III
- Maximum Amperage: 20A @ 12V, 15A @ 24V
- Amperage Operating Current: 18mA (LED)
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Actuator Position to Light LED: ON
- Embedded LEDs: 2
- Lighting: LED rated 100,000 hours half-life
- Seals: Internal and external gasket panel seal
- Weight: 0.09lb (0.04 kg)

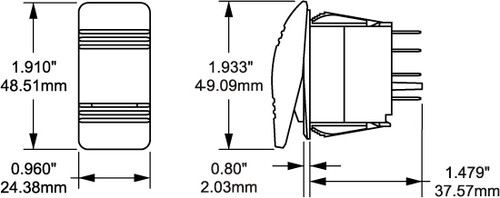

Dimension Drawing
