Blue Sea Systems Switch Battery HD Series Selector 3 Position With AFD

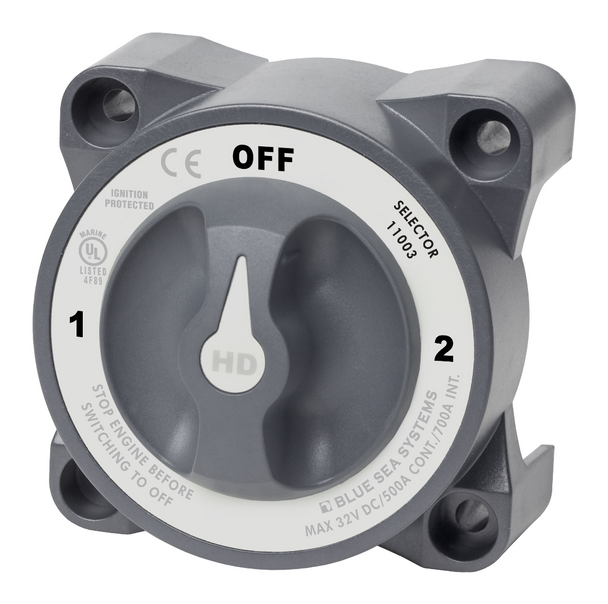

HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD

Switches isolated battery banks to all loads.

Features

• Includes AFD (Alternator Field Disconnect)
• Ignition protected - safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm²) battery cables

Specifications

• Switch Type: Selector 3 Position
• Color: Grey
• Switch Positions: 3
• Battery Combine: No
• Maximum Voltage: 32V DC
• Alternator Field Disconnect: Yes
• Terminal Stud Torque: 220 in-lb (24.86 Nm)
• Continuous Rating: 400A
• Intermittent Rating: 700A (5 min)
• Starting Rating 30 sec: 1600A
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Quantity to Meet Ratings: Two Cables / Terminal
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw
• Stud Material: Tinned Copper
• Switching Rating: 25A
• Terminal Stud Size: 1/2" (M12)
• Weight: 1.30lb (0.59 kg)

Switch set to 1

Switch set to 2

Technical File

Instructions
