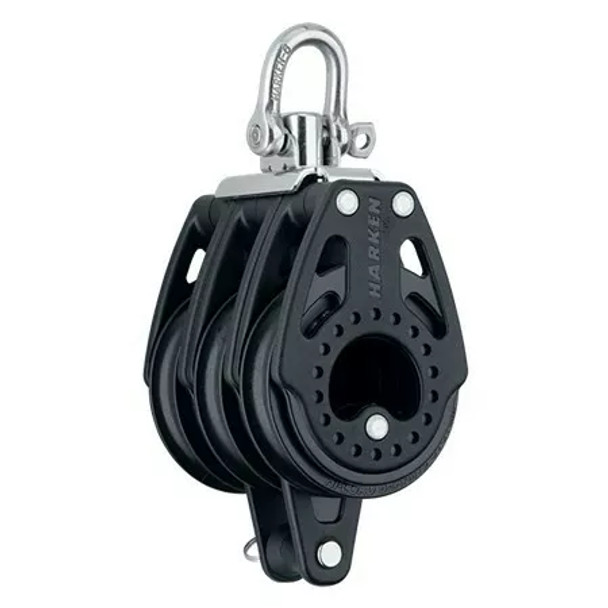

Harken 57mm Triple Carbo Block with Swivel & Becket 2605

Harken 2605 Triple 57mm Carbo Block with swivel shackle eye and becket. For 10mm line with a max working load of 1080kg. Low-friction carbo air blocks are lightweight, strong, reliable and affordable. Companions to the popular Harken black magic block line, these small, compact blocks have very high working loads for safe, easy trimming.

Specifications

• Sheave Ø (in): 2 1/4" (57 mm)
• Maximum line Ø (in): 3/8" (10 mm)
• Maximum working load (lb): 2380 lb (1080 kg)
• Length (in): 5 5/8" (142 mm)
• Weight (oz): 9.3 oz (264 g)
• Breaking load (lb): 5000 lb (2270 kg)
• Shackle pin Ø (in): 1/4" (6 mm)

Technical File

Instruction Manual
