Jabsco 1'' Magnetic Clutch Bronze Pump - Double Pulley - 2A Groove - 24V (2.5A)

Jabsco 1" bronze pump, 80-size, foot mounted with BSP threaded ports 24 V DC electric clutch with 2A pulley. (See related products for replacement impeller).

The Jabsco Jabsco 1" Magnetic Clutch Pumps can output 82 LPM and is suitable as a heavy duty bilge and deck wash pump which runs off an engine with 1500 rpm.

Features

• Bilge and deck wash pump
• Bronze body, stainless steel shaft
• Can handle moderate amounts of suspended solid matter
• Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water
• Constructed from marine quality bronze and stainless steel
• Easy to service and maintain
• Will tolerate abrasive wear
• Handles hard and soft solids without clogging
• Can pump in either direction
• Will not airlock

Specifications

• Maximum flow rate: 18 GPM (82 LPM)
• Self-priming: Up to 6.5' (2 m)
• Maximum head: 65' (20 m)
• Maximum power: 550 W @ 1500 rpm
• DC voltage: 24V
• Fuse size: 2.5A
• Pump size: 80
• Shaft seal type: Lip
• Bearing type: Twin row ball
• Clutch type: Electro-magnetic
• Port type: BSP
• Port size: 1" (25 mm)
• Mount type: Foot
• Length: 6.29" (160 mm)
• Diameter: 7.08" (180 mm)
• Weight: 6.55 kg

Material of Construction

• Body material: Bronze
• Impeller material: Neoprene
• Shaft material: 316 Stainless steel

The Jabsco Bronze Pump 50080-2001 Service Parts

• Service Kit - SK406-0001
• End Cover Screw - X3001-147F
• Gasket/O-Ring - 890
• Impeller - 17937-0001
• Water Seal - SP2700-1027

Spare Parts and Accessories

• Vacuum switch
• Service Kit
• Impeller & Gasket Kit
• Impeller removal tool: 040/080/120- size pumps

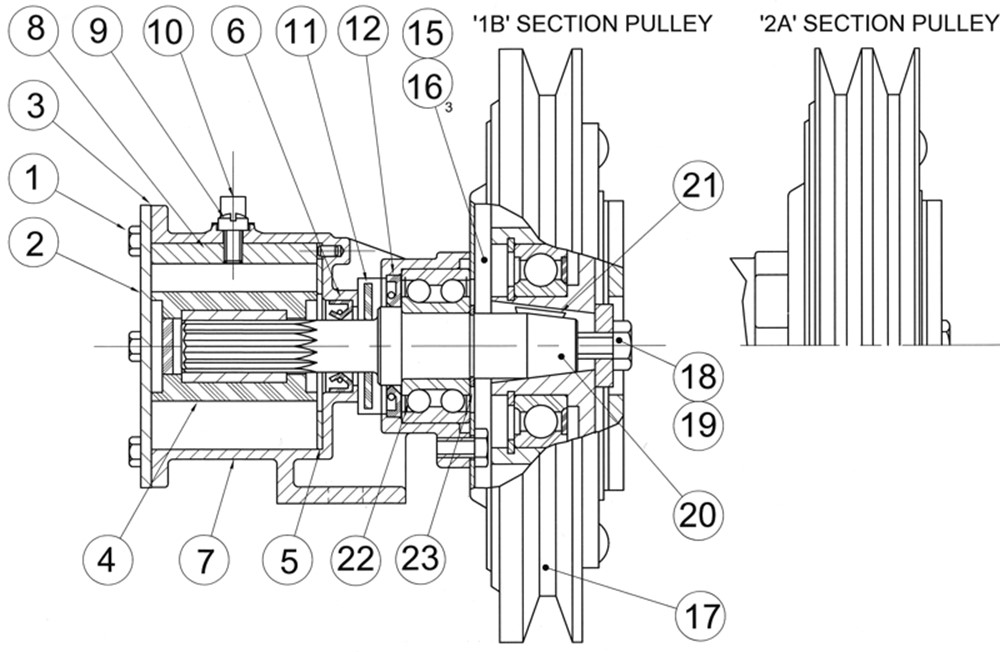

Dimension Drawing

Technical Files

Datasheet

Maintenance Instructions
