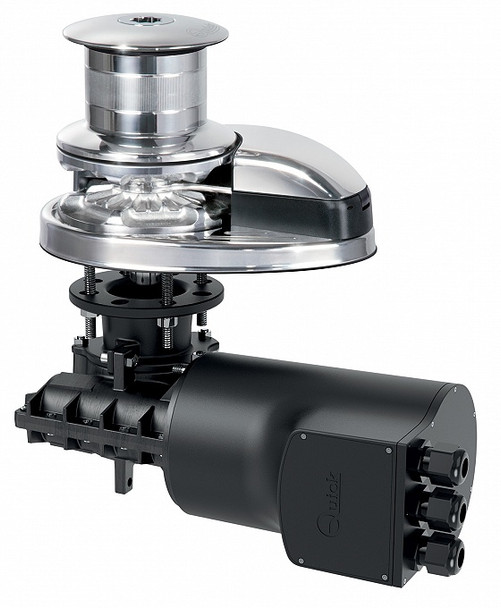

Quick DP3P-1012 Vertical Windlass 1000W 12V 10mm

The Quick DP3P 1012 Vertical Windlass 1000W 12V 10mm  is a high-capacity vertical windlass ideal for boats in the 10–14 m (33–46 ft) range. With a powerful 1000 W motor and the capability to handle 10 mm chain sizes, it offers robust anchoring performance suited to challenging Irish waters.

Engineered with marine-grade materials, this windlass features a stainless steel AISI 316 base with built-in chain pipe and a watertight IP67 motor, ensuring long-term reliability in corrosive sea environments. The unit supports rope-and-chain operation via a single gypsy, and includes an integrated sensor and magnet designed for chain counter compatibility. Its manual Free-Fall system enables fast anchor deployment when required, while the supplied inspection lid and pressure lever simplify maintenance and controls.

Features

• Designed for boats of 10–14 m (33–46 ft) - optimal match for mid-sized cruising vessels
• 1000 W motor at 12 V for reliable anchor handling
• Stainless steel AISI 316 base with built-in chain pipe for durability and clean installation
• Vertical windlass design, saving deck space while offering strong performance
• Single gypsy handles both rope and chain for streamlined anchoring
• Integrated sensor & magnet ready for chain counter connection
• Manual Free-Fall system to allow rapid anchor release when needed
• IP67-rated motor ensures water-tightness and resilience in marine environments

Specifications

• Motor Power: 1000 W
• Motor Supply Voltage: 12 V
• Maximum Pull: 1000 kg (2204 lb)
• Maximum Working Load: 370 kg (816 lb)
• Current Absorption: 140 A
• Maximum Chain Speed: 39.6 m/min (129.2 ft/min)
• Weight: DP3 (without drum): 17.4 kg (38 lb)
• DP3 D (with drum): 19.4 kg (42 lb)

Dimensions

Download

DP Series Manual
