Description

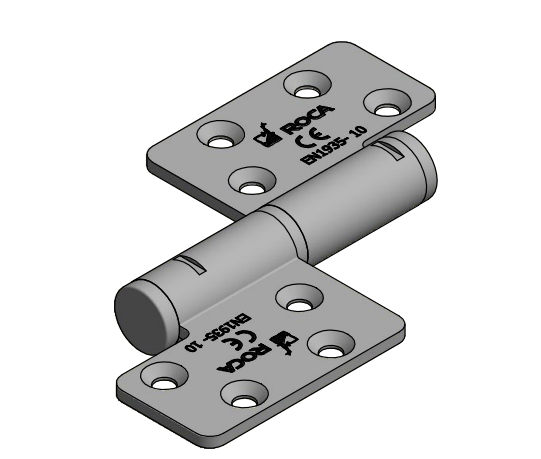

Roca 928086 Lift-off, non-mortise hinge in electropolished acid-proof stainless steel for doors where you have high sanitary demands like in the food industries, hospitals, and laboratories.
This is a Left hand model
Features
- Meet the requirements according to EN1935
- Very high corrosion resistance
- Suitable for use on fire/smoke doors
- CE approved
- Only 3 mm clearance between the door and frame is needed
Recommended Fasteners
- Sowester A4 CSK Self Tapping Screws 10 Guage (5.5mm)
- Sowester 5mm CSK Set Screws ( Nuts & Bolts)
Left Handed Layout

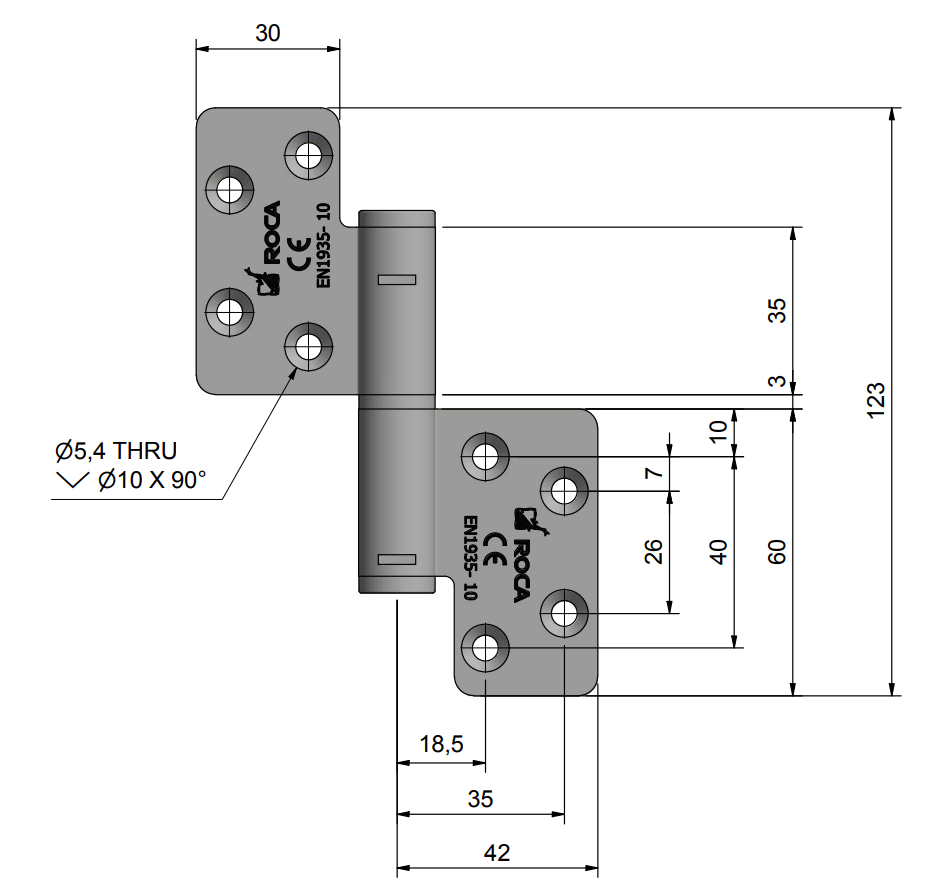

Dimensions
