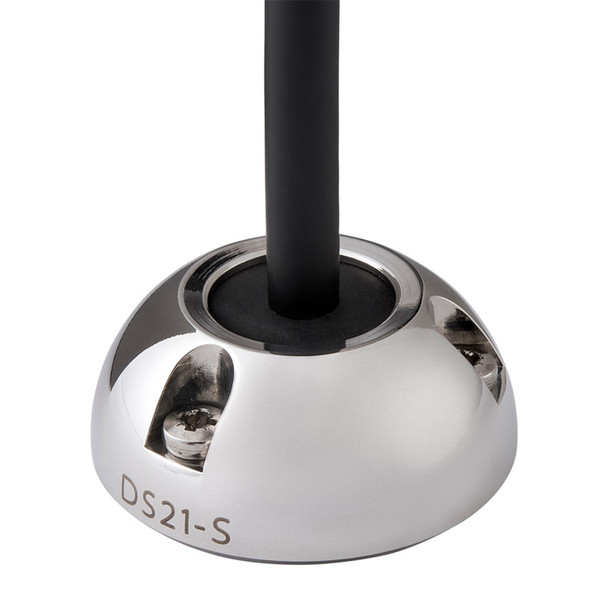

Scanstrut Stainless Steel Mini Cable Seal 4-9mm

For cables from 4-9mm (0.15"-0.35"), connectors up to Ø21mm (0.82") an aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.

Watertight Installation

Tapered bung forms a watertight seal. All units are supplied with a closed-cell base seal - 100% waterproof. All models have been IP68 tested and approved.

Easy and Reliable Installation

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

No Need to Remove Cable Connectors

Split-seal option does not require connector removal during install.

Multi-Functional Dome Shape

The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and the outer dome provides additional water shield.

Features

• IP68 waterproof rated
• Made from premium marine-grade UV-stable materials
• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Captive nuts ensure an easy and reliable repeat installation
• No messy sealant on bungs
• Split bungs for ease of installation
• Install connectors up to Ø21mm (0.82")in diameter
• Fully customizable with self-drill bung options

Specifications

• Material: Marine Grade Stainless Steel

• Height: 20.5mm (0.81")

• Colour: Silver

• Diameter of Cable Seal: 49mm (1.93")

• Diameter of Cable: 4 - 9mm (0.17 - 0.31")

• Bungs: 1 x 4mm (0.16") / 1 x 5mm (0.20") / 1 x 7mm (0.28") / 1 x Self drill
