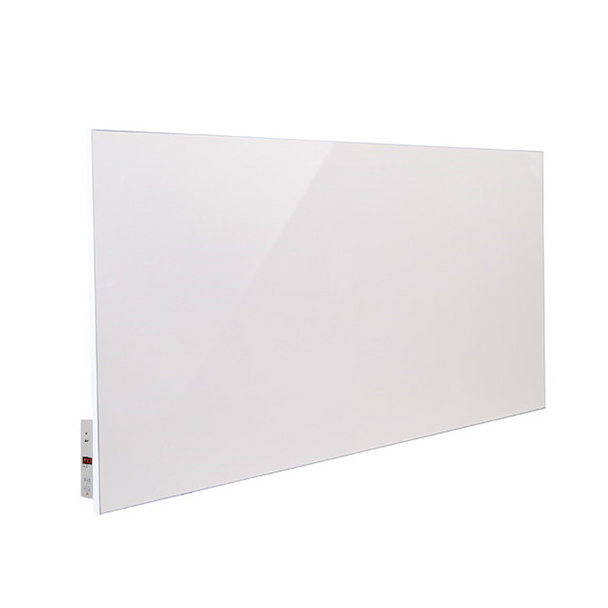

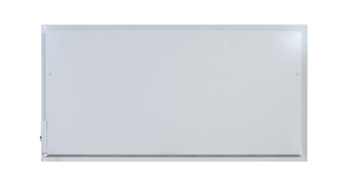

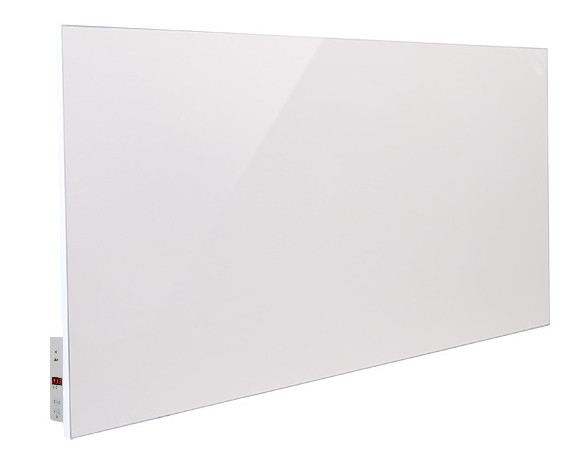

TeploCeramic TCM-WF 1000 Ceramic Heater with Wi-Fi

The Teplo Sunway TCM-WF 1000 is an infrared ceramic wall heater designed for indoor installation, combining a 1200 × 600 mm slim ceramic panel with a built-in Wi-Fi regulator. The unit supports manual control as well as mobile application access, allowing users to adjust temperature settings and set a continuous 24/7 operating schedule.

The integrated thermostat provides two temperature management functions, regulating both room air temperature and the surface temperature of the ceramic panel. This dual-control approach allows the heater to maintain selected temperature values during operation while supporting flexible heating control for residential and light commercial environments.

Built-in Wi-Fi with App Control

Built-in WiFi allows you to control the heater remotely using a smartphone app. You can adjust temperature settings, create heating schedules, and manage energy use whether you are at home or away.

Features

• Built-In Wi-Fi Control Module - Adjust temperature settings and configure a 24/7 operating mode through a mobile application or directly from the built-in regulator
• Dual Temperature Management - Controls both room air temperature and ceramic panel surface temperature
• Infrared Ceramic Heating Panel - Provides infrared heating with a 15% convection contribution
• Slim Decorative Panel Design - Thin ceramic wall panel with marble and ceramic finish options
• Silent Operation - No fans or moving parts during normal operation
• Wall-Mounted Installation - Supplied with a wall fastening set
• Integrated Regulator - Built-in control eliminates the need for an external thermostat for single-panel installations
• Complete Connection Kit - Power cord with plug included

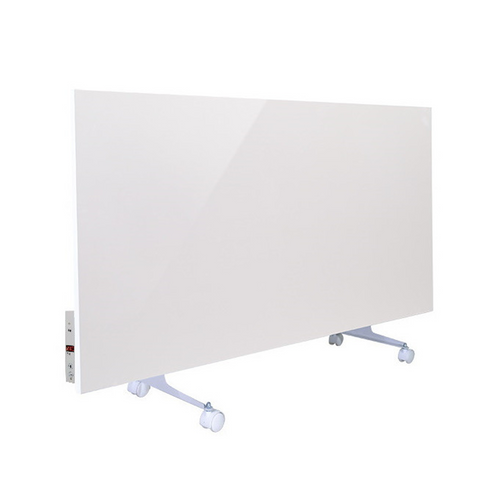

Optional Castor Kit

Add this handy set of castors to convert the panel to a self-standing and portable one

Smart Control System

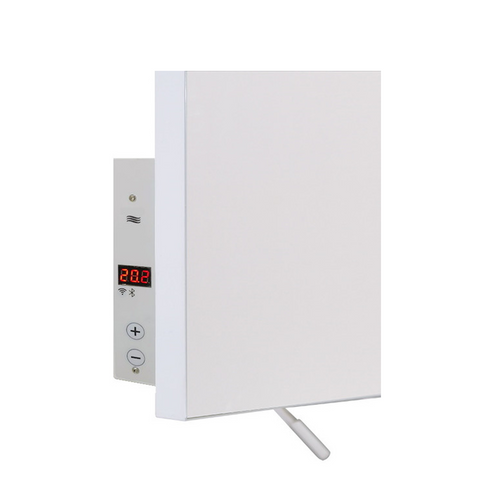

Wi-Fi Regulator & Temperature Functions

The thermostat on the heater supports two independent heat management functions:

Panel Surface Temperature Control

• Controls the heating level of the ceramic panel surface
• Adjustable range: 40°C to 95°C

Room Air Temperature Control

• Allows setting the desired room temperature
• Adjustable range: 5°C to 35°C
• Automatically switches the ceramic panel on or off to maintain the selected temperature

Control Functions

• Built-in Wi-Fi module with mobile app access
• Manual control via the integrated regulator
• 24/7 programmable operating mode

Applications

• Living Rooms
• Bedrooms
• Home Offices
• Apartments & Studios
• Indoor Commercial Premises

Specifications

Dimensions

Panel Dimensions

• Width: 1200 mm
• Height: 600 mm
• Thickness: 17 mm

Mounting Type

• Wall-Mounted

Downloads

Operating Instructions

Technical Datasheet

Wall Mounting & Safety Installation Instructions

Wi-Fi Setup Instructions
