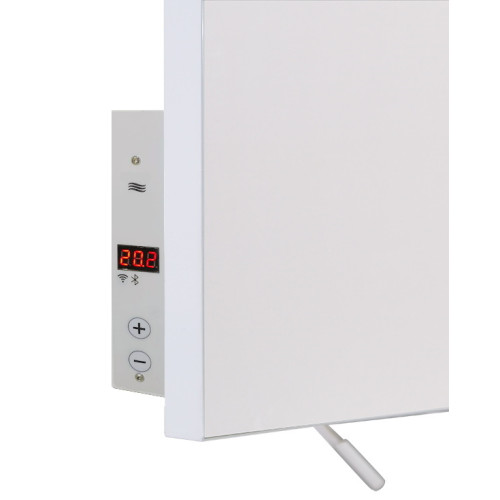

TeploCeramic TCM-WF 500 Ceramic Heater with Wi-Fi

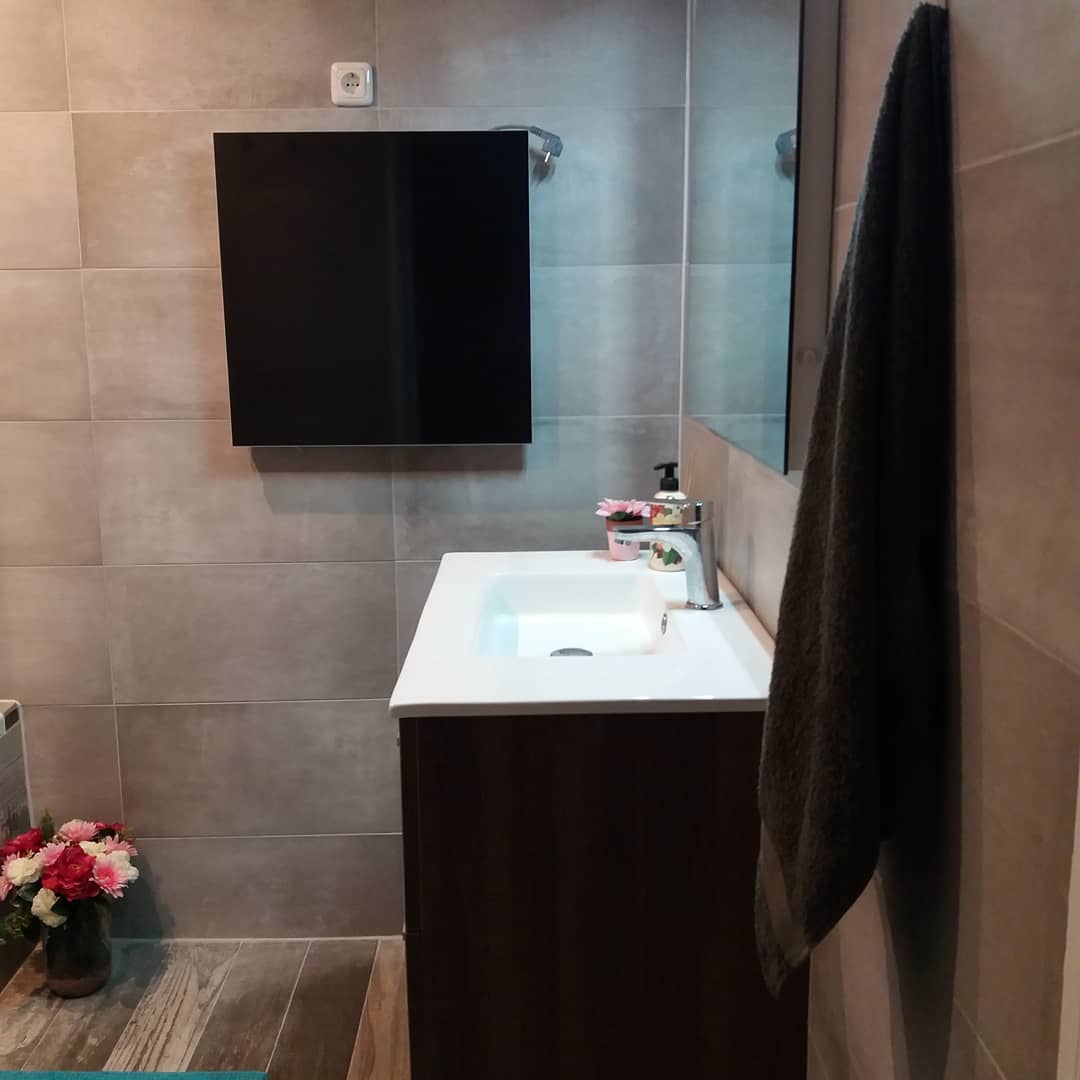

The TeploCeramic TCM-WF 500 is an economical infrared ceramic wall heater combining classic design with modern Wi-Fi temperature control. Featuring a 600 × 600 mm ceramic panel, it delivers comfortable radiant warmth while operating silently and efficiently. The slim form factor allows discreet wall installation without affecting interior aesthetics.

Equipped with a built-in Wi-Fi module and an intuitive mobile application, the TCM-WF 500 enables remote temperature adjustment and 24/7 programmable scheduling. Dual temperature sensors monitor both the room air and the ceramic panel surface, ensuring precise comfort control and safe operation without the need for an external thermostat.

Built-in Wi-Fi with App Control

Built-in WiFi allows you to control the heater remotely using a smartphone app. You can adjust temperature settings, create heating schedules, and manage energy use whether you are at home or away.

The built-in temperature controller allows regulation through two independent sensors

Features

• Wi-Fi Smart Control - Remote temperature and scheduling via mobile app
• Dual Temperature Sensors - Separate control for room air and panel surface
• Energy-Efficient Heating - Infrared heating with 15% convection
• Silent Operation - No moving parts or fans
• Slim Ceramic Design - 15 mm thickness for a clean wall profile
• Built-In Thermostat - No external regulator required
• Fire-Safe Operation - Resistant to voltage fluctuations
• Eco-Friendly Heating - No odors or harmful emissions
• Wall-Mount Ready - Fixing kit and power cord included

Smart Control System

Panel Surface Temperature Control

• An internal hidden sensor connected to the front ceramic surface
• Adjustable range: 40°C to 95°C
• Allows limiting panel surface temperature for safety

Room Temperature Control

• External sensor located at the bottom of the heater
• Adjustable range: 5°C to 35°C
• Automatically switches the heater on/off to maintain set room temperature

Smart Functions

• Wi-Fi mobile app control
• 24/7 programmable operating mode
• Remote temperature adjustment
• Manual control via built-in buttons

Applications

• Residential rooms
• Children’s rooms
• Kindergartens
• Schools
• Well-insulated indoor spaces

Specifications

Dimensions

• Width: 600 mm
• Height: 600 mm
• Thickness: 15 mm

Downloads

Operating Instructions

Technical Datasheet

Wall Mounting & Safety Installation Guide

Instruction Wi-Fi Heater
