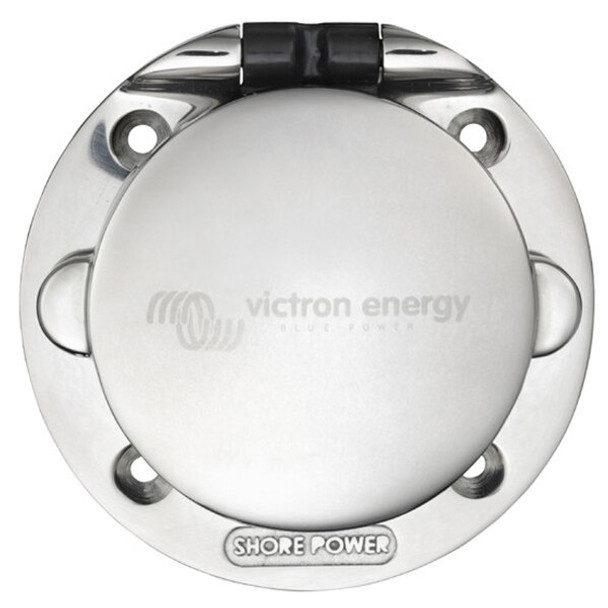

Victron Energy Power Inlet Stainless Steel with Cover - 16A

The Victron Energy Power Inlet Stainless Steel with Cover – 16A is a premium shore power inlet designed to provide a safe, durable, and weather-resistant connection between external AC power sources and onboard electrical systems. Constructed from high-quality stainless steel, this inlet offers superior corrosion resistance, making it especially suitable for marine, coastal, and outdoor environments.

Features

• Power indication LED
• Moulded plug and connector
• Waterproof IP 56 shore power cable and inlet
• Protection cap on female connector
• CE certified

Specifications

• Current rating: 16 A
• Voltage rating (AC): 250 V
• Cover: Solid cast 316 stainless steel
• Plug body: PA6
• Pins: Brass, Nickel plated
• Standard: IEC 60309, 2p+E
• Waterproof: IP56
• CE Certified: Yes
• Weight: 0.34 kg

Technical Files

Datasheet

Dimension Drawing
