Description
Features
- HR Forged snap shackle (Grade 17.4 ph stainless steel) with fixed eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
Specifications
| Size | Weight | Working load | Breaking load | Length | Materials |
| 50mm | 42g | 960kg | 2000kg | 50mm | HR 17.4 PH stainless steel grade |
| 70mm | 90g | 1280kg | 3000kg | 70mm | HR 17.4 PH stainless steel grade |

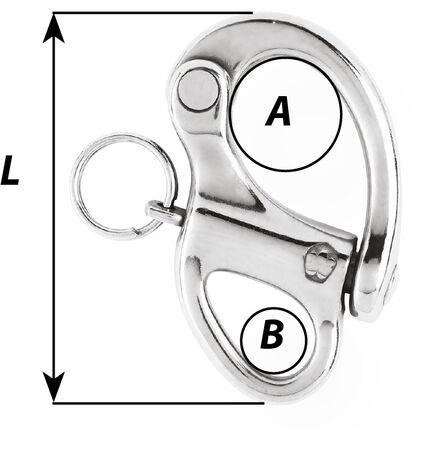

Dimensions
| Size | 50(mm) | 70(mm) |
| A | 16 | 21 |
| B | 10 | 13 |
| L | 50 | 70 |
Applications
- Snap shackle applications with fixed eye
- Use for applications where the free rotation is not required
