Jabsco Plain Shaft Pump - Size 40 (3/4") - Model 52040-2001

Flexible impeller pumps are self-priming and, therefore, ideal for engine cooling, washdown, circulation and many general purposes onboard or dockside. The bronze bodies and stainless steel shafts are well suited for marine environments. They can operate in either rotational direction.

Features

• Constructed from marine quality bronze and stainless steel
• Easy to service and maintain
• Will tolerate abrasive wear
• Handles hard and soft solids without clogging
• Can pump in either direction
• Will not airlock
• Standard neoprene impeller
• Double row angular contact bearing allows short length pump
• Lip seal offers low cost reliability in medium duty environments

Specifications

• Pump size: 40
• Mount type: Foot
• Bearing type: Twin single row ball type
• Seal type: Lip Seal
• Port type: BSP
• Port size: 3/4" (19 mm)
• Output: 8.8 GPM (40 LPM)
• Self-priming: Up to 18' (5.6 m)
• Maximum head: 65' (20 m)
• Nominal speed: @ 1500 rpm
• Length: 5" (12.8 cm)
• Width: 4" (10.6 cm)
• Height: 3" (7.6 cm)
• Weight: 3 lb (1.5 kg)

Materials of Construction

• Body material: Bronze
• Impeller material: Neoprene
• Shaft material: 316 Stainless steel

Service Kits and Common Parts

• Service Kit - JSK384-0101
• Gasket/O-Ring - J3298
• Impeller - J1210-0001
• Water Seal - JSP2701-1015
• End Cover Screws - JX3001-095F

Spare Parts and Accessories

• Impeller & Gasket Kit
• Impeller removal tool: 040/080/120- size pumps
• 3/4" Hose Adapter
• 1" Hose Adapter

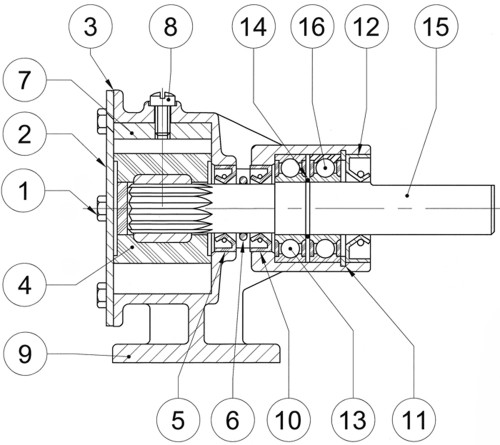

Drawing and Specifications

Technical File

Datasheet
