Jabsco
Jabsco Engine Cooling Pump - Size 40 (3/4") - Model 9970-200
- SKU:
- J9970-200
- UPC:
- 671880551410
Description
Jabsco Engine Cooling Pump 9970-200.
Flange mount - Size 40 (3/4").
Marine engine cooling pump for
- Hawker Siddeley Marine (Lister Petter)
- Hamworthy
- Perkins
- Lehman
- Sisu (Valmet)
Specifications
- Pump size: 40
- Mount type: Flange
- Drive type: Coupling
- Port type; BSP
- Port size: 3/4" (19 mm)
- Length: 5 5/8" (14.3 cm)
- Width: 4" (10 cm)
- Height: 3 3/8" (8.6 cm)
- Weight: 4 lb (1.8 kg)
Service Kits and Common Parts
- Service Kit - JSK229
- Gasket/O-Ring - J3298
- Impeller - J1210-0001
- Water Seal - J22617-0010
- End Cover Screws - JSP1002-02
Spare Parts and Accessories
- Impeller & Gasket Kit
- Service Kit
- Impeller removal tool: 040/080/120- size pumps

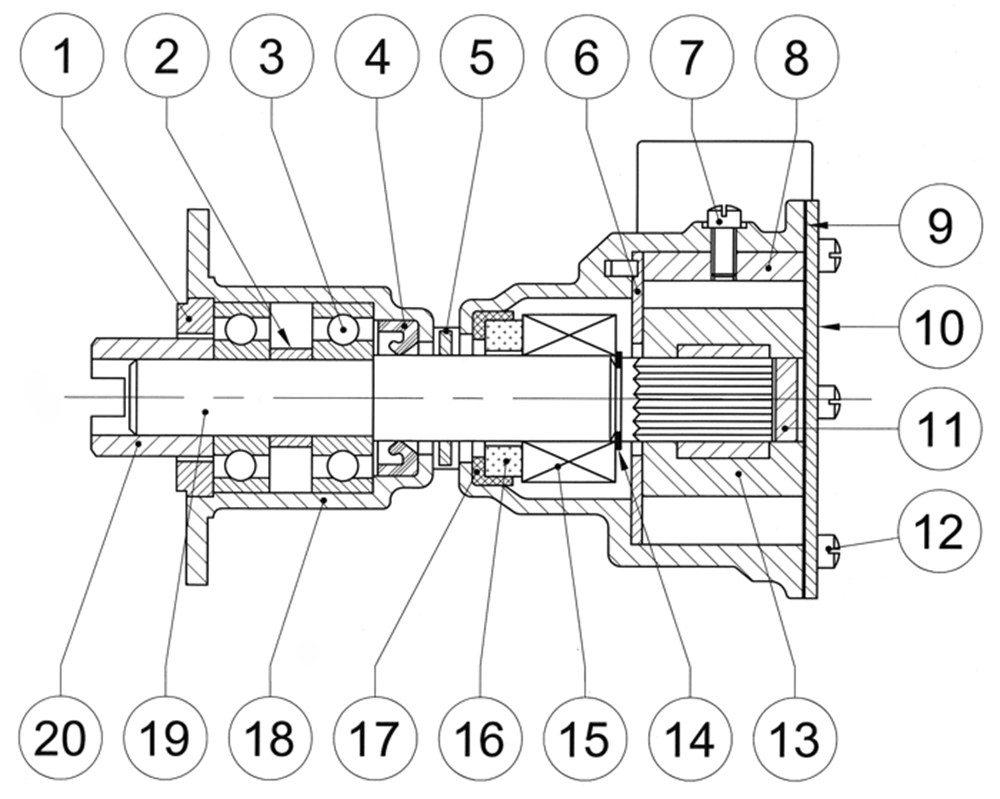

Drawing and Specifications
| Item | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Adaptor Ring | 3376 | 1 |
| 2 | Spacer | 9998 | 1 |
| 3 | Bearing | 92600-0130 | 2 |
| 4 | Seal | SP2701-21B | 1 |
| 5 | Slinger (3 Pack) | 3286-0000 | 1 |
| 6 | Wearplate | 7883-0000 | 1 |
| 7 | Screw (3 Pack) | 91003-0010 | 1 |
| 8 | Cam | 490-0001 | 1 |
| 9 | Gasket | 3298-0000 | 1 |
| 10 | End Cover | 11830-0000 | 1 |
| 11 | Spline Plug (3 Pack) | 4345-0000 | 1 |
| 12 | Screw (3 Pack) | 91002-0020 | 6 |
| 13 | Impeller & Gasket Kit | 1210-0001-P | 1 |
| 14 | Retaining Ring (3 Pack) | 91700-0620 | 1 |
| 15 | Seal Assembly | 22617-0010 | 1 |
| 19 | Shaft | 9977 | 1 |
| 20 | Coupling | 3278-0000 | 1 |
| - | Service Kit | SK239 | 1 |
Download
