Description
A robust flexible impeller pump with self priming capabilty - New pump body design feature, allows an extended period of dry running up to 10 minutes.
Features
- Non-rusting bronze body
- Continuously rated electric motor
- Simple, fully serviceable design with few wearing parts
- Built-in dry-running protection for up to 10 minutes after initial prime
- Lip type shaft seal
Specifications
- Flow output: At 3m Head 29.5lpm
- Max Head : 6m
- BSP inlet and discharge port size: 3/4" (19 mm)
- Rapid self-priming from dry: Up to 3' (1.2 m)
- DC voltage: 24V
- Fuse size: 10A
- Maximum current: 7.5A
Dimensions
- Length: 179 mm
- Width: 1254mm
- Height: 110 mm
- Weight: 3.3kg

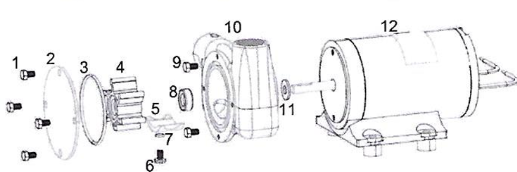

23920-2523 Parts List & Pump Disassembly & Assembly
| Key | Description | Quantity | Part Number |
|---|---|---|---|
| 1 | *End cover screw | *4 | *X3001-147F |
| 2 | End cover | 1 | 23825-0000 |
| 3 | End cover seal | 1 | *X4020-257A |
| 4 | Impeller | 1 | 6303-0003 |
| 5 | CAM | 1 | 53023-0100 |
| 6 | *CAM screw | *1 | *X3002-147F |
| 7 | *CAM screw seal | *1 | *X4020-105A |
| 8 | *Lip Seal | *1 | *SP2701-52 |
| 9 | Pump/Motor Screws | 2 | X3001-147F |
| 10 | Pump Body (NPT) | 1 | 53024-9100 |
| 10 | Pump Body (BSP) | 1 | 53024-2100 |
| 11 | Slinger 2000 | 1 | 6342 |
| 12 | Motor (12V) | 1 | 98012-2652C |
| 12 | Motor (24V) | 1 | 98012-2653C |
| — | *Service Kit | 1 | SK415-0003 |
