Jabsco
Jabsco Utility Puppy Self-Priming Pump - 3000 23920-2223 12V
- SKU:
- J23920-2223
- UPC:
- 671880629454
- MPN:
- 23920-2223
Description
The Jabsco Utility Puppy Self-Priming Pump 3000 12V (25A) is for heavy-duty, continuously rated applications. With a new pump body design that allows for extended run dry periods, this continuously rated heavy-duty Utility Puppy 3000 offers very high flow for bilge, deck wash, and general purpose use, and ten minutes dry running.
Features
- Built-in dry-running protection for up to 10 minutes after initial prime
- Rapid self-priming from dry up to 2.4m
- Carbon-ceramic shaft seal
- Non-rusting bronze body
- Continuously rated electric motor
- Simple, fully serviceable design with few wearing parts
Specifications
- Connections: ¾” BSP inlet and discharge ports
- Dimensions: length 220mm, width 125mm, height 105mm
- Fuse Size: 25 amp
- Maximum Current: 21 amp
- Output: up to 50 litres/minute (11 gallons/minute). Max 12m head
- Packaged Dimensions: L:29.00 x H:14.00 x W:16.00cm

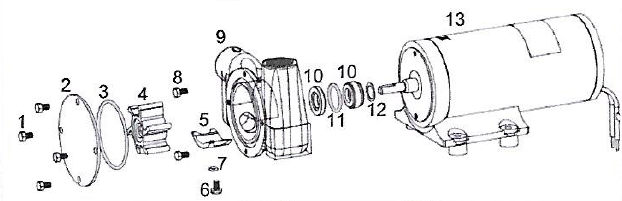

Diagram and Dimensions
23920-2223 Parts List & Pump Disassembly & Assembly
| Key | Description | Quantity | Part Number |
|---|---|---|---|
| 1 | *End cover screw | *4 | *X3001-147F |
| 2 | End cover | 1 | 23825-0000 |
| 3 | End cover seal | *1 | *X4020-257A |
| 4 | Impeller | 1 | 7273-0003 |
| 5 | CAM | 1 | 53023-0100 |
| 6 | *CAM screw | *1 | *X3002-147F |
| 7 | *CAM screw seal | *1 | *X4020-105A |
| 8 | Pump/Motor Screws | *2 | X3001-147F |
| 9 | Pump Body (NPT) | 1 | 53024-9000 |
| 9 | Pump Body (BSP) | 1 | 53024-2000 |
| 10 | *Mechanical Seal (static) | *1 | *SP8021-0301B |
| 11 | *O ring Slinger | *1 | *X4020-221B |
| 10 | Mechanical Seal (Dynamic) | 1 | SP8021-0301B |
| 12 | Support washer | 1 | X5263-002 |
| 13 | Motor (12V) | 1 | 98012-0161C |
| 13 | Motor (24V) | 1 | 98012-0162C |
| - | *Service Kit | - | SK415-013 |
