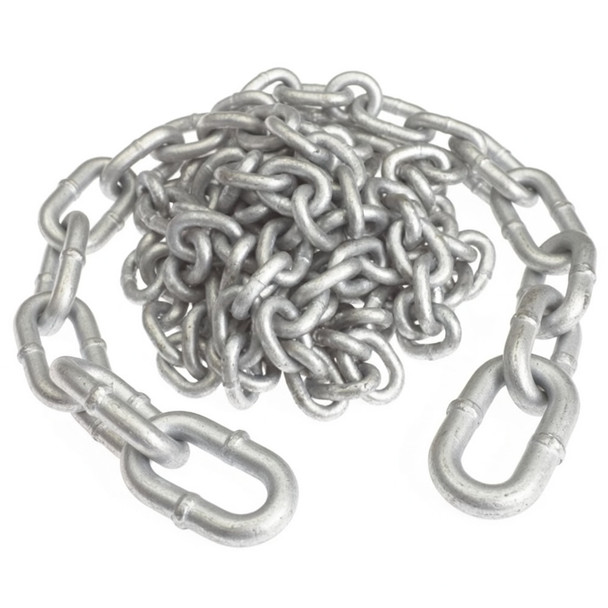

William Hacketts Galvanised Mooring Riser Set 8mm x 3m DIN766

This 8mm diameter calibrated anchor chain is supplied in a 3-metre length and is specifically designed as a mooring riser (ground chain) between the anchor and the main anchor line or rope.

Ideal for boats in the 1,000 kg to 4,000 kg displacement range. The heavy-duty galvanised chain provides excellent abrasion resistance and weight near the anchor, improving holding performance and protecting the lighter anchor rope from chafe on the seabed.

Features

• End links: Oversized end links on both ends (approximately 50% larger than standard links) for easy connection to shackles, anchors, and rope thimbles
• Calibration: Short-link calibrated chain for smooth operation through windlasses and chain lockers

Specifications

• Diameter: 8 mm
• Length: 3 metres
• Grade: DIN 766 Grade 32 (high-strength hot-dip galvanised steel)
• Dimensions: Pitch (P) ≈ 24 mm, internal width (W1) ≈ 9.6 mm, external width (W) ≈ 27.2 mm
• Weight: 4.35 kg for 3m
• Minimum breaking load: 32 kN
