Description
Wichard stainless steel long dee shackle with quarter twist, lever style captive pin, ideal for Halyards or lines that need to be frequently connected. The captive pin prevents loss and is easier to close with numb hands in cold conditions.
Features
- Self-locking long shackle forged in grade 316L stainless steel
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times, even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
Applications
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head
Specifications
| Size | Working load | Breaking load | Weight | Length | Width |
| 6mm | 680kg | 2200kg | 40 g | - | - |
| 8mm | 1080kg | 3600kg | 92g | - | - |
| 4mm | 320 Kg | 1000 Kg | 12g | 29mm | 10mm |
| 5mm | 480kg | 1500kg | 17g | 29mm | 10mm |

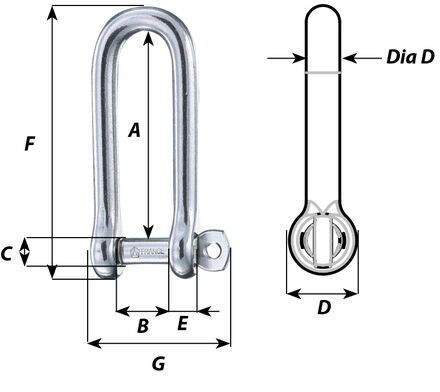

Dimension
Downloads
