Description

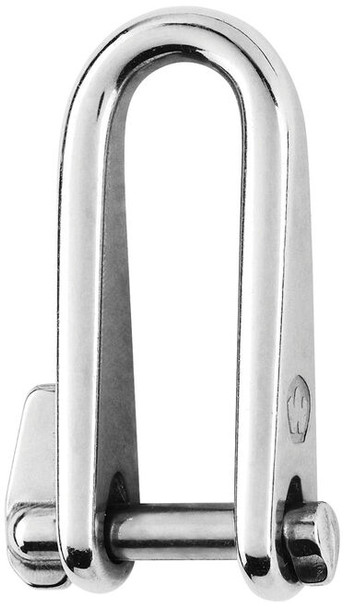

Wichard stainless steel long dee shackle with quarter twist, lever style captive pin, ideal for Halyards or lines that need to be frequently connected. The captive pin prevents loss and is easier to close with numb hands in cold conditions.
Features
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing are done simply by rotating the pin half a turn
- No risk of losing the pin as it remains attached
- Outstanding working and breaking loads
Specifications
| Size | Weight | Working load | Breaking load |
| 6mm | 48g | 520kg | 1500kg |
| 8mm | 121g | 800kg | 2300kg |
| 5mm | 31g | 1000kg | 400kg |
Application
- Perfect product for halyards or applications requiring the opening/closing of the shackle often

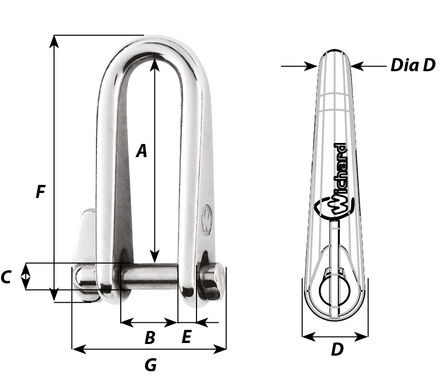

Dimensions
Size: 6mm
- A: 45 (mm)
- B: 16 (mm)
- C: 6 (mm)
- D: 13 (mm)
- D: diameter 6 (mm)
- E: 4 (mm)
- F: 60 (mm)
- G: 37 (mm)
Size: 8mm
- A: 59 (mm)
- B: 21 (mm)
- C: 8 (mm)
- D: 17 (mm)
- D: diameter 8 (mm)
- E: 6 (mm)
- F: 79 (mm)
- G: 49(mm)
Size: 5mm
- A: 37(mm)
- B: 13(mm)
- C: 5(mm)
- D: 11(mm)
- D: diameter 5(mm)
- E: 4(mm)
- F: 49(mm)
- G: 31(mm)
Download
