Description
The Jabsco Utility 3000 24v electric pump is a continuous rated, heavy duty impeller pump, ideal for bilge, deck wash and general purpose use, Fitted with a nitrile impeller suitable for oil contaminated water or oil-based products ( Check suitability of fluid before use ).
Features
- Built-in dry-running protection for up to 10 minutes after initial prime
- Rapid self-priming from dry up to 2.4m
- Carbon-ceramic shaft seal
- Non-rusting bronze body
- Continuously rated electric motor
- Simple, fully serviceable design with few wearing parts
Specifications
- Output: up to 50 litres/minute (11 gallons/minute). Max 12m
- Self-priming from dry up to 2.4m (8ft)
- Body Materials: Bronze
- Impeller: Nitrile
- Seal Type: Lip Seal
- Voltage: 24V
- Amp Draw: 10 amp
- Fuse Size: 15 amp
- Maximum Current: 11 amp
- Motor Type: Permanent magnet, continuous rated
- ISO: 8846 MARINE (Ignition protection)
- ISO: 8849 MARINE (Bilge pump standard)
Dimensions
- Dimensions: length 220mm, width 125mm, height 105mm
- Connections: ¾” BSP inlet and discharge ports
- Weight: 3.3 kg
Replaces
23920-2313

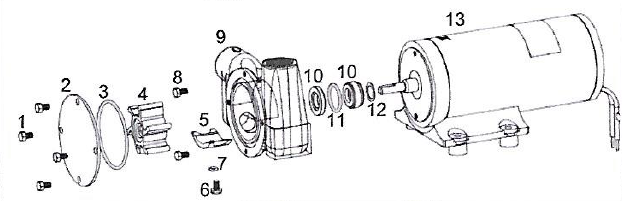

23920-2323 Parts List & Disassembly & Assembly Instructions
| Key | Description | Quantity | Part Number |
|---|---|---|---|
| 1 | *End cover screw | *4 | *X3001-147F |
| 2 | End cover | 1 | 23825-0000 |
| 3 | End cover seal | *1 | *X4020-257A |
| 4 | Impeller | 1 | 7273-0003 |
| 5 | CAM | 1 | 53023-0100 |
| 6 | *CAM screw | *1 | *X3002-147F |
| 7 | *CAM screw seal | *1 | *X4020-105A |
| 8 | Pump/Motor Screws | *2 | X3001-147F |
| 9 | Pump Body (NPT) | 1 | 53024-9000 |
| 9 | Pump Body (BSP) | 1 | 53024-2000 |
| 10 | *Mechanical Seal (static) | *1 | *SP8021-0301B |
| 11 | *O ring Slinger | *1 | *X4020-221B |
| 10 | Mechanical Seal (Dynamic) | 1 | SP8021-0301B |
| 12 | Support washer | 1 | X5263-002 |
| 13 | Motor (12V) | 1 | 98012-0161C |
| 13 | Motor (24V) | 1 | 98012-0162C |
| - | *Service Kit | - | SK415-013 |
