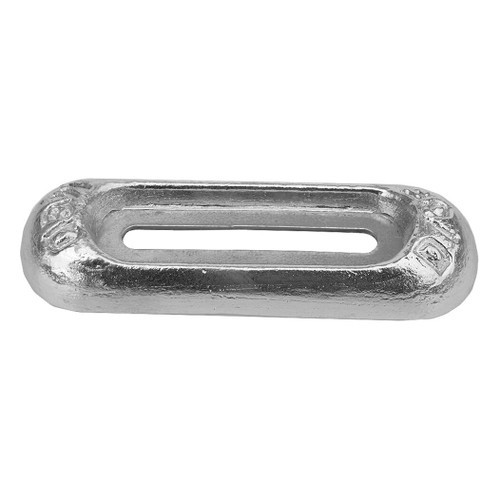

MGDuff ZD76 Zinc Mini Euro Bar Anode ZD76

(No reviews yet) Write a Review
SKU:
45330
Salt water
$57.34

Description

The MGDuff ZD76 'Mini Euro' Anode is fully adjustable from 0-110mm holes centres making it perfect as a versatile hull anode. Made from zinc for use in saltwater.

Nominal weight 1.2kg.
Bolt- on . Hole centres up to 110mm centres.

MgDuff Code: ZD76 Euro
Material: Zinc for Saltwater Protection
Weight (kg): 1.35kg
Length: 200mm
Width: 65mm
Depth: 33mm
Stud Size: M10
Number of Fixing Holes: 1
Fixing Hole Details: 110mm x 12mm slot hole at 0mm-110mm centres

Guide:

1. Choose your material:
- Zinc for saltwater boats
- Aluminium for saltwater or brackish waters
- Magnesium for fresh water
2. Select Style and Model:
- Bolt-on hull anodes come with 8" or 9" hole centres (You have to buy the studs or bolts separately) weld-on requires the anode to be welded in place (usually commercial vessels)
- There are different models of anode depending on where you put it. Shaft and beneteau anodes protect the drive shaft and stern tube. Hull anodes can be placed anywhere depending on where you want to protect and pencil/engine anodes tend to be specially designed for each brand and model engine. Button or disc anodes are designed to protect rudder / trim tabs.

*For more information on placement or engine anodes please contact us on 00353 28 23190.

**With regard to steel boats, it is vital that special attention is paid to areas around the water line. These are particularly vulnerable but receive no protection from anodes above the water line.

***All MGDuff anodes will suit wood, GRP or steel hulls. For aluminium hull anodes please contact one of our branches.

Composition:

High spec MGDuff Zinc Anodes for leisure and commercial vessels.
Composition:
Iron: FE 0.005 Max
Cadmium: Cd 0.025-0.07
Copper: Cu 0.005 Max
Aluminium: Al 0.10-0.50
Lead: Pb 0.006 Max
Others Total: 0.10 Max
Zinc: Remainder
Potential Ag/AgCl -1.05v
Capacity-Amp.hr/kg 780
