Description

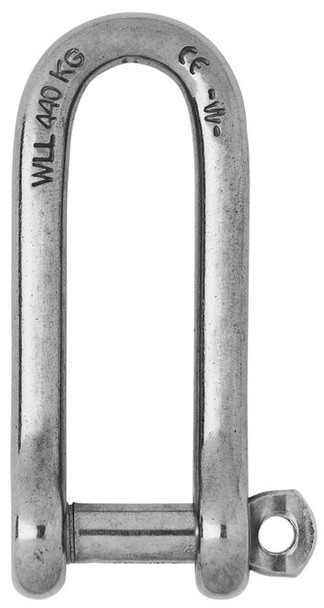

Wichard Long D Shackle with Captive Pin 5mm
Features
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loose due to vibrations
- Outstanding working and breaking loads
- 5mm shackle
Applications
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head
Specifications
- Material: Grade 316L stainless steel
- Weight: 17g
- Working load: 480kg
- Breaking load: 1500kg
- Length: 29mm
- Width: 10mm
Downloads
