Description
Provides a termination point for extending the length of outboard harnesses or other conductors.
- Designed for connecting high amp conductors
- Includes one black and one red insulator
Specifications
- Colour: Black, Red
- Maximum voltage: 48 V DC
- Mounting: #10 Screw (M5)
- Stud size: 5/16"
- Number of stud: 18
- Stud torque: 13.56 N-m (120 inch-lb)
- Weight: 0.15 kg (0.32 lb)
- Certification: CE

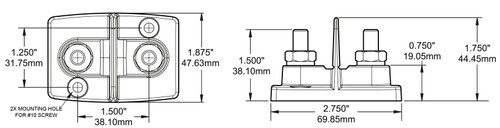

Dimension Drawing
Optional Accessories
- MaxiBus Insulating Cover for PN 2127 and 2128
