B&G

B&G Triton2 Digital Display

SKU:
NAV-000-13294-001
UPC:
9420024155196
On Special
  • B&G Triton² Digital Display
  • B&G Triton² Digital Display - Side View
  • B&G Triton² Digital Display
Now €570.00
Was €635.00
Frequently bought together:

Description

Multi-purpose sailing instrument and autopilot display with a 4.1" colour screen, optically bonded for zero condensation and featuring trans-flective LCD technology for exceptional contrast and visibility in all lighting conditions. 8mm mounting height matches other B&G MFD’s and system components.

Triton² Series

Triton² Series

Fit out your boat with Triton² sailing instruments and enjoy crystal-clear displays that put the sailing data you rely on exactly where you need to see it.

Your Course Looks Clearer with Triton²

Your Course Looks Clearer with Triton²

See the data you rely on: Speed, depth, wind and more, in full colour on Triton²’s low-profile, intuitive displays. The 4.1" screen will show you what you need to see, night and day – and even in direct sunlight – giving you all the information you need to sail your boat smarter and in safety, whatever the weather.

See What you Want to See

See What you Want to See

Customise Triton² to show what you want to see, placed exactly where you want to see it. Simple numerical screens show any data available on your network, while the intuitive SailSteer display places everything you need in one place, with wind data and boat speed overlaid on an intuitive diagram that also shows laylines, heading and waypoint information. To help keep you safe on the water, Triton² will also display AIS data for a clear view of surrounding vessels – and with a linked DSC VHF radio you can call them, straight from the instrument display.

Low Profile Screen

Low Profile Screen

Triton²'s low profile design will enhance any cockpit. Standing only 8mm proud, the sleek display has wide viewing angles and exceptional brightness, but consumes a negligible 150mA of power. So, whether you mount the display at the helm, on the bulkhead or over the hatch, you’ll always be able to see the data you need.

Set Up Your Triton² System

Triton² is so simple to use that you shouldn’t need the manual. Here, B&G Product Expert Mike Sugden talks you through the various Triton² Display settings and views to ensure you get the most from your B&G display when set up for cruising mode.

Triton² Autopilots

Triton² Autopilots

With the addition of a Triton² Pilot Keypad, your Triton² display becomes a fully-featured controller to take command of your B&G autopilot.

Triton² Pilot Takes Control in Perfect Safety

Triton² Pilot Takes Control in Perfect Safety

Sit back and enjoy the sailing with a Triton² Pilot. Designed for sailors and tested in every one of the world’s oceans, a Triton² Pilot will helm your boat hour after hour better than most helmsmen. Triton² Pilots feature Intelligent Sail Steering functionality with compass and wind steering, Smart Manoeuvre controls to tack at the touch of a button, and chartplotter integration to enable waypoint and route navigation. The keypad offers precise control of all the autopilot functions, automatically displayed on a nearby Triton² display.

There's a Pilot Pack For You

There's a Pilot Pack For You

Tailor the Triton² pilot to your boat with our range of mechanical and hydraulic autopilot drive units, and choose an autopilot computer pack to suit your boat: the NAC-2 computer is suitable for boats up to 35’, while the NAC-3 suits boats up to 50'. Packs also include a rudder reference sensor, Precision-9 heading sensor and NMEA 2000 backbone kit.

Features

  • Optical Bonding: Sporting an Optically Bonded 4.1" LCD display, Triton² allows you to see clearly in all conditions with its large clear colour display 100% free from condensation or fogging.
  • Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending time available from your battery capacity.
  • Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons.
  • Low Profile Design: At just 8mm thin the Triton2 instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won’t get in the way, catch ropes or offend the eye!
  • NMEA 2000 Certified: NMEA 2000 certification means you can be confident when adding Triton2 to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system..
  • Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data.
  • Autopilot Integration: Triton² will display B&G Pilot data on a clear status screen.
  • With the addition of a Triton² Pilot keypad the instrument becomes a fully functional Pilot controller.
  • Intuitive design makes it easy to configure and use your display.
  • The Triton² is simple and quick to install

Specifications

  • Display size: 4.1"
  • Display resolution: 320 x 240 pixels
  • Power consumption (maximum): 1.8 W
  • Power consumption (typical): 1.4 W
  • Supply voltage: 12 volt DC (10-16 volt DC)
  • Compass safe: 300 mm (1.0')
  • NMEA 2000 connectivity: 1 x Micro-C port, 3 LEN
  • Storage temperature range: -40 to +85ºC (-40ºF to +185ºF)
  • Operating temperature range: -25 to +65ºC (-13ºF to +149ºF)
  • Recommended fuse rating: 5A
  • N2K PGNs: 59392,59904,60928,126208,126992,126996,127237,127245,127250,127251,127257,127258,127488,127489,127493,127505,127508,128259,128267,128275,129025,129026,129029,129033,129038,129039,129040,129041,129283,129283,129284,129284,129539,129540,129794,129801,129802,129808,129809,129810,130074,130306,130310,130311,130312,130313,130314,130576,130577,
  • Languages: English, French, Spanish, German, Italian, Swedish, Croatian, Norwegian
  • Humidity: Up to 95% RH
  • Mounting type: Flush
  • Waterproof rating: IPX7
  • Backlight colour: White, Red, Green, Blue
  • Interface: Keypad
  • Approvals compliance: IEC/EN 60945
  • Dimensions (W x H x D): 118 mm (4.6") x 115 mm (4.5") x 37 mm (1.4")
  • Weight: 0.32 kg

Included Accessories

  • N2K-T-RD Network T-Connector
  • N2KEXT-2RD 2ft Network Extension Cable
  • Suncover for Triton² Display
  • Install Kit for Triton² / IS42

Optional Extra

Precision-9 Compass NAV-000-12607-001

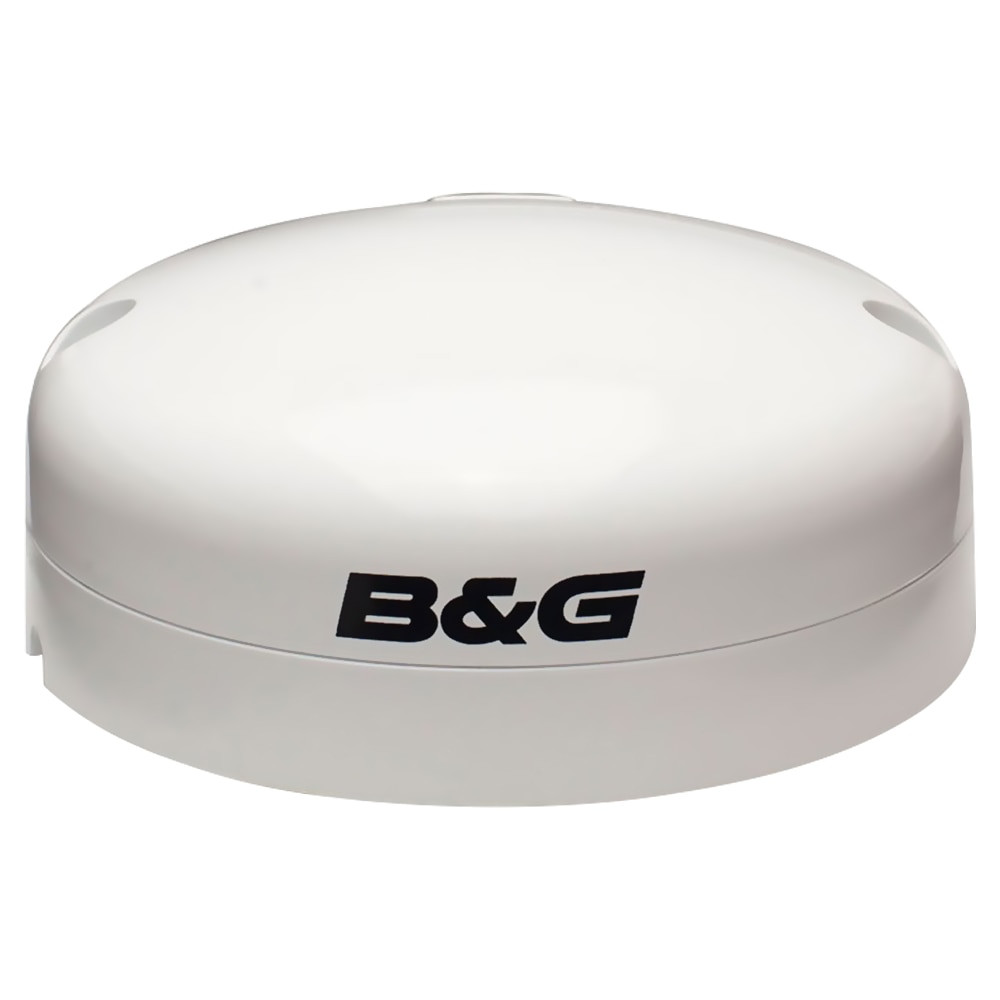

ZG100 GPS Antenna with Compass NAV-000-11048-001
