Description

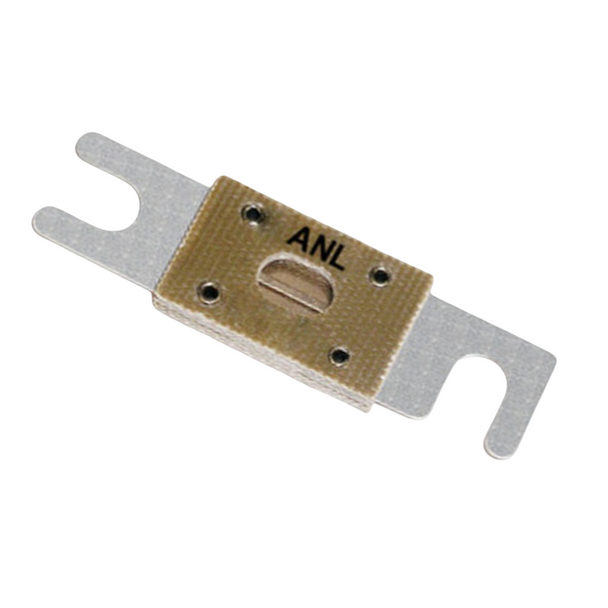

ANL Fuse - 35 Amp
Features
- Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline-powered boats (35-500 Amp only)
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown condition
- 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
- For use with Blue Sea Systems' ANL Fuse Blocks
Specifications
- Amperage: 35A
- Ignition Protected: Yes
- Maximum Voltage: 32V DC
- Interrupt Capacity: 6000A @ 32V DC
- Weight: 0.07lb (0.03 kg)
Works with

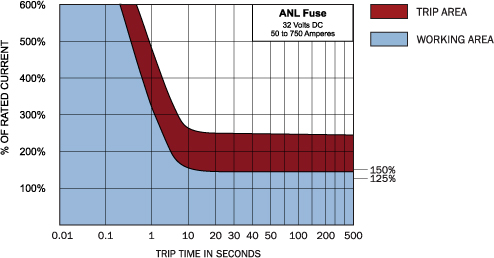

Blow Delay Curve
Dimension Drawing
