Description

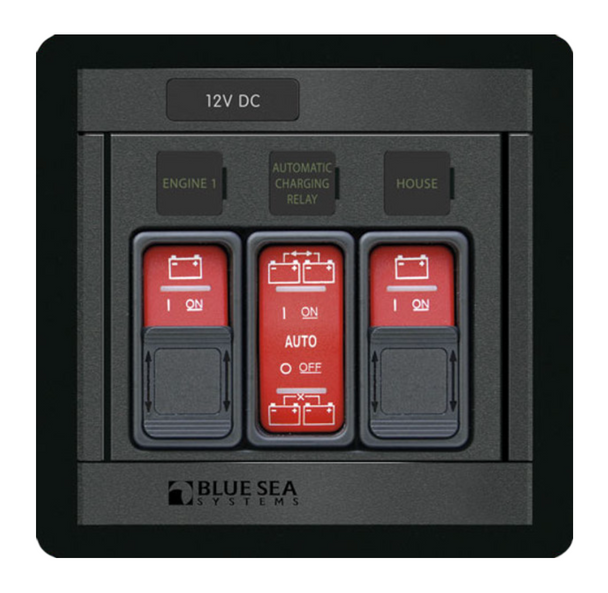

The Blue Sea 1147 ML-Series Remote Control Panel provides switching of two ML-Series Remote Battery Switches or Solenoids and ML-Series Automatic Charging Relay
Features
- Lockout slides reduce the risk of accidental switching
- For use with two ML-Series Switches and one ML-Series Automatic Charging Relay
- Includes labels illustrated only
- Over 500 individual labels available
- Blue Sea 360 Panel System
- Fixing Screws provided
Example Installation - Remote Battery Management and ACR SubSystem
Specifications
| Positions | 3 |
| Nominal Voltage | 12V DC 24V DC |
| Height | 4.75in (120.65 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 2.00in (50.8 mm) |
| Weight | 0.83lb (0.38 kg) |
Included Switches
| 2 | BS2145 | SPDT Remote Control Contura Switch - (ON)-OFF-(ON) |
| 1 | BS2146 | SPDT Remote Control Contura Switch - ON-OFF-ON |
