Description
The BMM Wide Tackle Block is engineered for strength, reliability, and smooth operation in demanding lifting and rigging applications.
Designed with a swivelling fork eye with a roller that can be easily replaced, this tackle block ensures maximum flexibility in load alignment, reducing stress on the line and improving overall handling efficiency during operation. The wide sheave design allows for better rope performance, minimising wear while supporting consistent load movement.
Features
- Steel sheave
- Fork eye with roller that's easily replaced
- High-strength sheave for rigging or lifting
Specifications

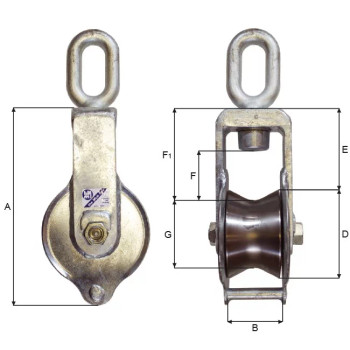

| Part no | Max load on | Test load (t) | A (mm) | B (mm) | D (mm) | E (mm) | F (mm) | F′ (mm) | G (mm) | Max wire Ø (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KT110 | 5.1 | 12.0 | 270 | 85 | 110 | 150 | 85 | 128 | 70 | 28 | 7.0 |
| KT115 | 6.0 | 16.0 | 320 | 85 | 110 | 150 | 85 | 128 | 70 | 28 | 11.0 |
| KT215 | 12.0 | 32.0 | 420 | 150 | 150 | 155 | 85 | 130 | 110 | 28 | 17.0 |
| KT150/180 | 10.0 | 20.0 | 515 | 180 | 215 | 215 | 100 | 145 | 170 | 28 | 36.0 |
Download
