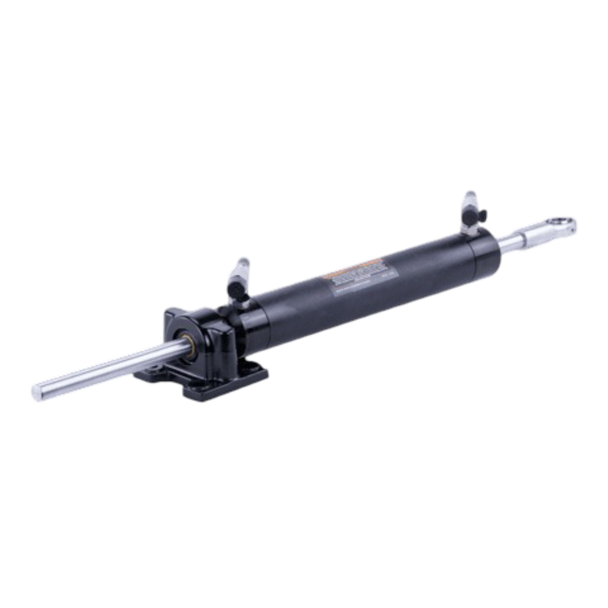

Dometic Seastar Steering Cylinder BA135-7ATM - 7" Stroke 8.3 cu.in.
- SKU:
- TXHC5313-3
- UPC:
- 731957801692
Description
The Dometic Seastar BA150-7ATM is a aluminium and stainless steel hydraulic inboard steering cylinder with 7" stroke, 8.3 cu in capacity - Suitable for boats 8 -10m.
Features
- Low friction hydraulic steering system
- Configurations for most inboards
- Easy installation on single or dual rudders
- Adjustable O-ring sealed fittings c/w bleeder fittings
- Anodized aluminum or heavy duty brass cylinders
(two axis articulation) - Meets A.B.Y.C. standards
- Meets N.M.M.A. certification requirements
Specification
- Travel 7"
- Capacity 8.3 cu.in.
- Cylinder Dia 1.375"
- Shaft 0.625" dia.
- Torque @ 1000psi @ 35° = 5741in/lbs
System Selection Guide
The Cylinder HC5313-3 ( Use with Helm HH5271 )
Suits vessels identified as Code 4 in the Chart below
How to Order
- 1 x Cylinder TXHC5313-3
- 1 x Helm TXHH5271
- 2 x Hydraulic Oil TXHA5430
- 3/8" Nylon Tubing or Tube Kit as required
Dimensions
