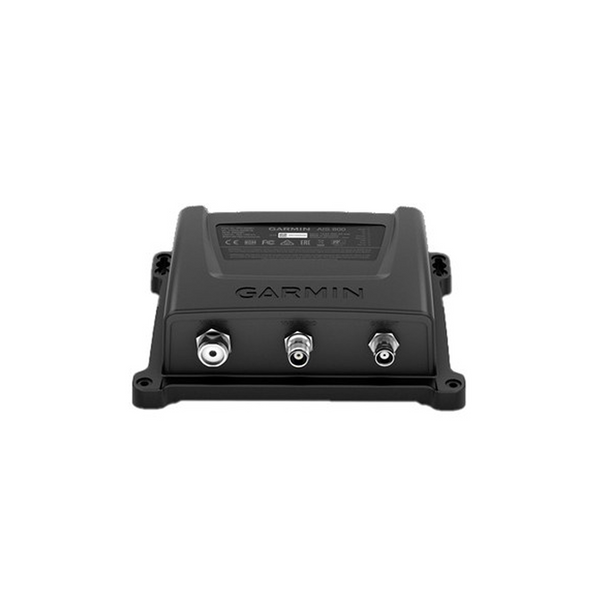

Garmin AIS 800 Blackbox Transceiver Class B

SKU:
G010-02087-00
UPC:
753759209919
MPN:
010-02087-00
Special
Now €1,190.00
Was €1,226.95

Description

Garmin's AIS 800 is easy-to-use, giving reliable communication of your vessel to other AIS targets in your area while receiving AIS target data. The AIS 800 has built-in GPS with connector for optional external antenna along with NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays.Life is also made easier with its internal VHF antenna splitter, allowing VHF and AIS to share a single antenna

Integrates seamlessly into the Garmin on-board system. The transceiver features NMEA 0183/2000® connectivity for easy integration with compatible chartplotters and multifunction displays. And it’s all packed into an easy-to-install black box unit with a small footprint.

Features

  • Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data
  • 5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before1
  • Built-in GPS with connector for optional external antenna
  • NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays
  • Internal VHF antenna splitter allows VHF and AIS to share a single antenna

Specifications

  • Dimensions: 17.5 x 14.2 x 5.5 cm
  • Weight: 414 g
  • Operating temperature range: -15°C to 55°C
  • Waterproof rating: IPX7
  • Compass safe distance: 40 cm
  • Operating voltage: 9.6 - 31.2 Vdc
  • Current drain: 12Vdc: < 400 mA; 24Vdc: < 250 mA
  • Antenna connector: S0-239 (50 Ω)
  • GPS refresh rate: 1 Hz
  • Max antenna gain: 9 dB
  • Transmitter power: 5 W
  • NMEA 2000 LEN: 2

In The Box

  • AIS 800
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 metres)
  • VHF antenna extension (1.2 metres)
  • USB adapter cable
  • Power cable
  • Mounting hardware
  • Documentation

Download

FAQs

1. Does the Garmin AIS 800 send out vessel details and receive AIS target information?

Yes, the AIS 800 is known to transmit your vessel details to other AIS receivers in range while receiving the AIS target information from other vessels.

2. Does the Garmin AIS 800 support transmit power of 5 watts?

Yes, it has a 5 watt Class B/SO transmitter that gives it fast position reporting capability.

3. Does the AIS 800 include GPS capabilities?

Yes, its integrated GPS receiver has an external GPS antenna connector.

4. Does the AIS 800 support connectivity to compatible chartplotters and multifunction displays?

Yes, this is because of its NMEA 0183 and NMEA 2000 compatibility, which makes it compatible with Garmin marine equipment, chartplotters, and multifunction displays.

5. Does the AIS 800 work with VHF antenna along with the marine radio?

Yes, the VHF antenna splitter in this product allows it to share one antenna with marine radio devices.
