Garmin Panoptix Ps30 Forward Transom/Trolling Transducer

Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you’ve ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer transom mounting kit included.

With the Garmin Panoptix Down transducer, you can actually see fish and bait swimming around under your boat — in real time; even while stationary. You get 3 remarkable views: LiveVü Down, RealVü 3-D Down and RealVü 3-D Historical.

The Views

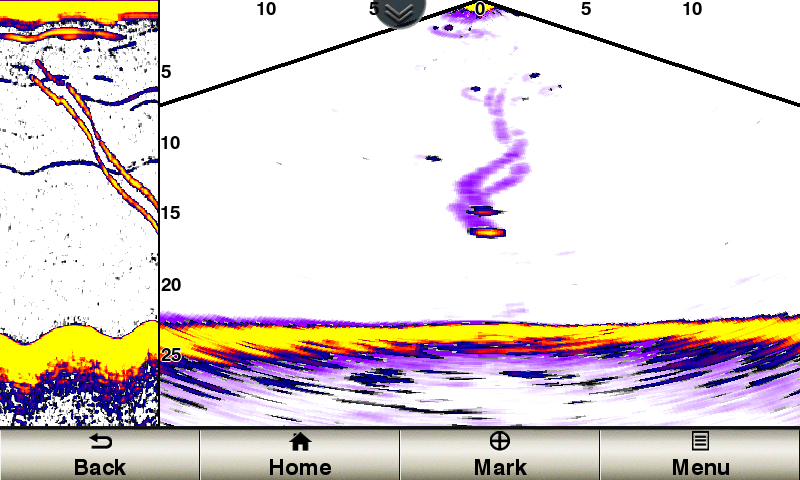

LIVEVÜ DOWN

Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure.

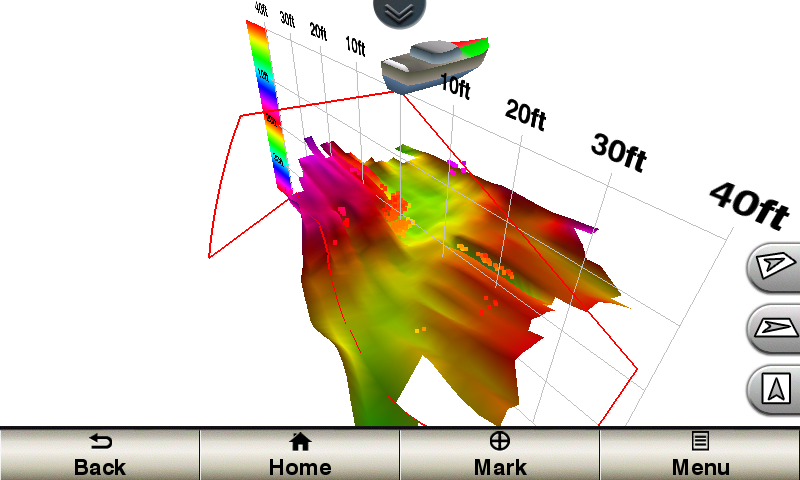

REALVÜ 3-D DOWN

Allows your boat to be stationary and still see things in 3-D around your boat. It shows history of only 1 sweep./p>

REALVÜ 3-D HISTORICAL

Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom of the surface and all of the fish in between.

Specifications

In the Box

• PS30 down-looking transducer (integrated 30 ft network cable, 15 ft power cable)
• Transom mount
• Split ring RJ45 connector
• Documentation

Downloads

Transducer Placement Guide

Installation Instructions

FAQs

1. Is it possible to get real-time sonar imaging by the Garmin Panoptix Down transducer?

Yes. You can see fish and bait moving below your vessel in real-time, even when the vessel is not in motion.

2. Does the transducer have different modes of sonar viewing?

Yes. Three modes are available - LiveVü Down, RealVü 3-D Down and RealVü 3-D Historical viewing of fish and underwater activities.

3. Can you see fish chasing your lure using the Garmin Panoptix Down transducer?

Yes. The LiveVü Down mode allows you to watch fish approach or move away from the boat, watch baitfish and fish reactions to your lure.

4. What is the maximum depth the Garmin Panoptix Down transducer is able to use for its sonar imaging?

Yes. It has the capability of operating sonar imaging down to depths of 300 feet.

5. Does the Garmin Panoptix Down transducer come with any mounting equipment and cables?

Yes. The kit contains the PS30 down-looking transducer with included 30 foot network cable and 15 foot power cable, transom mount, split-ring RJ45 connector and instructions.
