Description

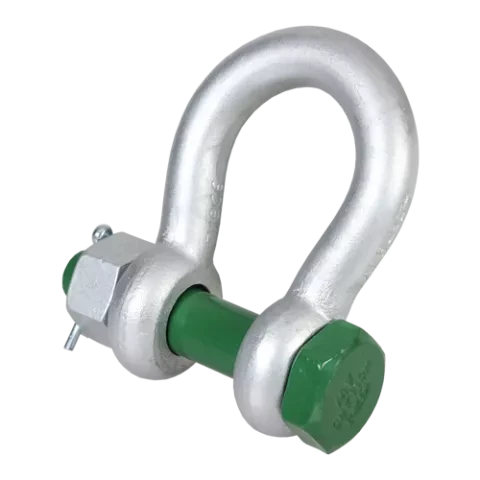

The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The shackle's hot dipped galvanization ensures long-term durability as required by the NS 9415 standard, in compliance with NYTEK regulation.
Specifications
-
Product code G-4163BG
-
Material Bow and pin high tensile steel, Grade 6, quenched and tempered
-
Safety factor: MBL equals 6 x WLL
-
Finish: Hot dipped galvanized
-
Temp. Range-40°C up to +200°C
-
Certification
- 2.1
- 2.2
- 3.1
- MTCa
- CE
- DNV NS 9415
-
Standard : EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A and NS 9415. From 2 t and upward these shackles comply with ASME B30.2

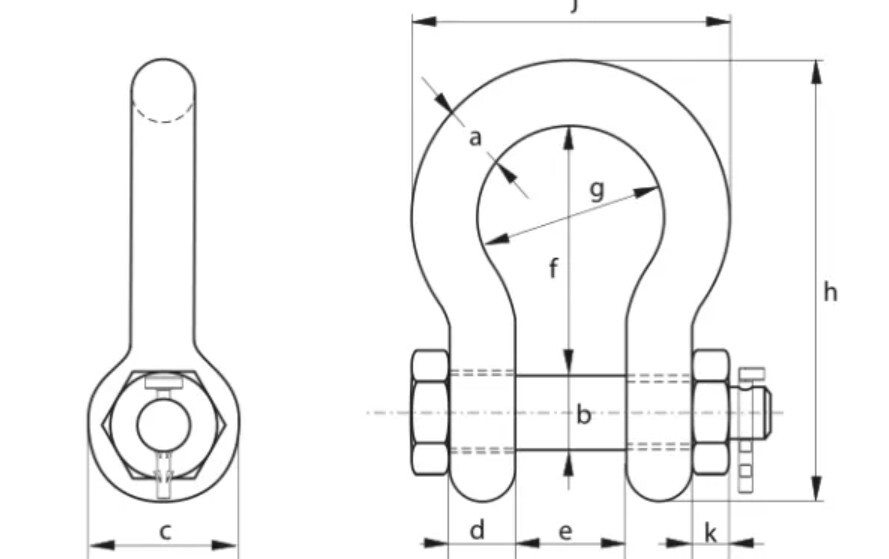

Dimensions
| working load limit (ton)
|
diameter bow (mm)
A
|
diameter pin (mm)
B
|
diameter eye (mm)
C
|
width eye (mm)
D
|
width inside (mm)
E
|
length inside (mm)
F
|
width bow (mm)
G
|
length (mm)
H
|
length bolt (mm)
I
|
width (mm)
J
|
thickness nut (mm)
K
|
Net weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | 0.42 |
| 3,25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | 0.74 |
| 4,75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | 1.18 |
| 6,5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | 1.77 |
| 8,5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | 2.58 |
| 9,5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | 3.66 |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | 4.91 |
| 13,5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | 6.54 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 19 | 8.19 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 249 | 216 | 23 | 14.0 |
Videos Hide Videos Show Videos
Related Products
Related Products

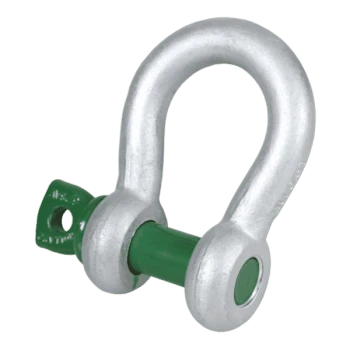

Green Pin Bow Shackles
