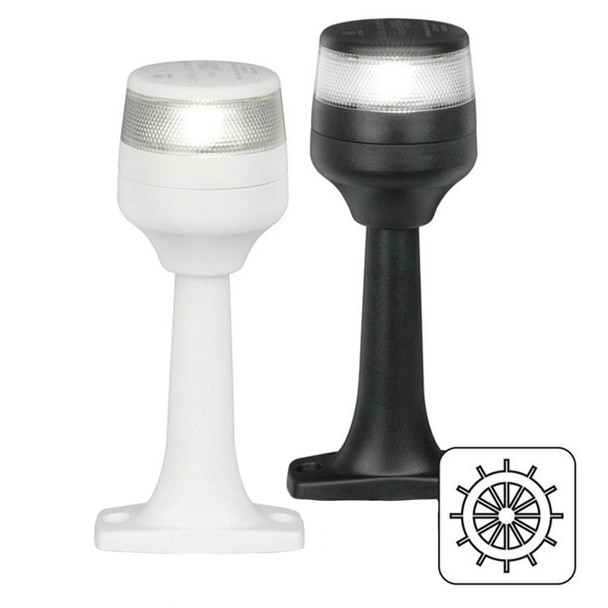

Hella NaviLED 360 Fixed Pole Navigation Anchor Light

Compact LED anchor lamps featuring advanced materials and electronic protection for ‘fit and forget’ reliability. With less than 1W consumption, NaviLED360 lamps save power
onboard.
Taking the popularity of the restyled NaviLED 360 Compact All Round / Anchor lamp Hella marine has expanded the product family with pole mounted versions with fixed, fold down and plug-in base options.

Using only high performance materials the NaviLED 360 Compact series is long term durable in demanding marine environments.

A power consumption of less than 1W power offers exceptional power efficiency for a 2 NM all round anchor lamp.

Each lamp is completely sealed (IP67) and manufactured using Swiss Made Grilamid with unsurpassed properties. Long term stability against UV degradation coupled with high impact and chemical resistant meaning these lamps will not yellow, become embrittled or corrode.

Internationally approved the NaviLED 360 series meets the requirements of COLREG, USCG, ABYC-16, RCD, WHEELMARK, UKCA, and Red Ensign. Multivolt™ circuitry provides constant illumination and circuit protection from 9-33V DC.

Features

• UV resistant, enhanced impact acrylic lens.
• 2 Nautical Miles (Yachts and Powerboats)
• Pre-wired with twin core marine cable
• Multivolt™ 9-33V DC
• IP67 - Completely Sealed

Specification

Material Description	UV resistant, enhanced impact acrylic lens.
Minimum Visible Distance	2 Nautical Miles (Yachts and Powerboats)
Cable	Pre-wired with twin core marine cable
Operating Voltage	Multivolt™ 9-33V DC
Voltage Protection	Spike protected to +500 volts. Reverse polarity protected to -500 volts
Power Consumption	1.0W
Degree of Protection	IP67 - Completely Sealed
Approvals	IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ, CE, UKCA, Red Ensign

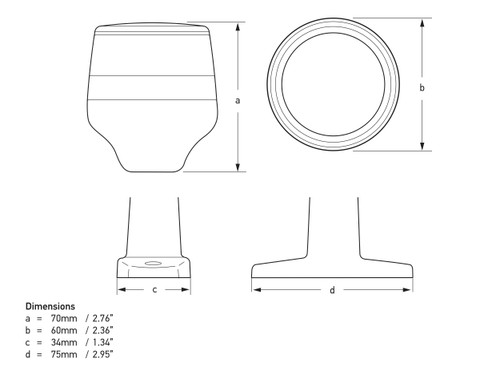

Dimensions









This product is designed for operation on 12-24V systems.
