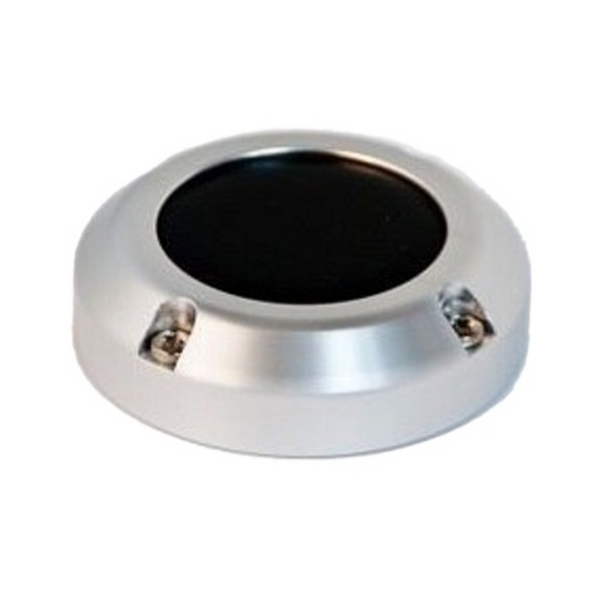

Index Aluminium Cable Gland 50mm

Index Marine Cable Gland DG50A are deck gland with IP68 waterproof rating. Made from Aluminium and comes with a 50mm diameter gland. This unit replaces the Index A1M50.

Index Marine have created the new DG50A cable glands with their attractive, low profile shape to replace the well known M Series cable glands. The range has passed independent rigorous dust and waterproof testing to IP 68. Each unit is supplied with clear fitting instructions and A4 stainless steel fixings.

DG Deck Glands are easy to fit and do not require the removal of fitted connectors when installing. Undrilled cable glands allow one or many cables to be passed through the same gland, including cables with fixed connector fitted. Following instructions supplied, the tapered seal can be drilled for as many cables as required, and if necessary, slit to allow passage of a cables with connector fitted.

Material: Marine grade Anodised Aluminium
Rated: IP68
Height: 23mm
Diameter: 84mm
Max Internal Diam : 50mm :
Max size of connector that will pass through the gland 50mm
Index gland part no: DG50A
