Isotherm Refridgeration Unit - Suitable for Freezer up 86L - 12/24V

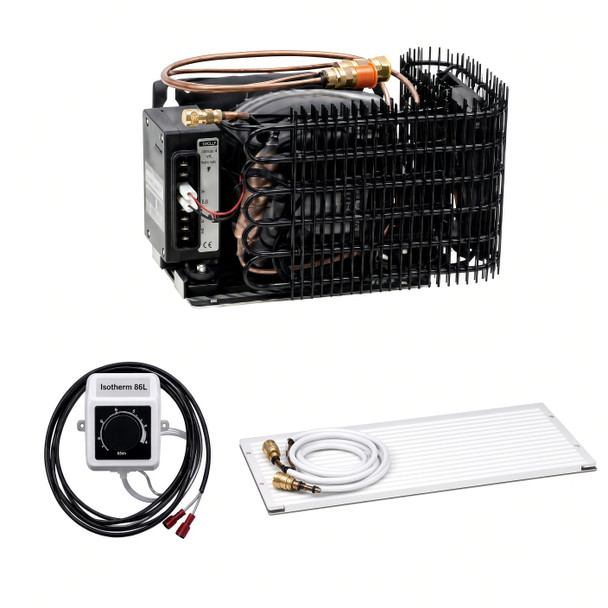

The Isotherm indel U000X086P13111AA is an 86L compact, air cooled freezer system, ideal for an easy build iint location, freezer system

Air Cooling with Mechanical Control

Isotherm air-cooled units use a fan to circulate air over the condenser, effectively removing heat. Proper ventilation of the compressor compartment is essential, allowing cool air to enter from below and warm air to escape from above, ensuring optimal performance. The mechanical thermostat is the standard control element of the cooling unit program,being reliable and easy to use for boat owners.

Features

• Air Cooled
• Mechanical Control Unit
• Suiable for 86L Freezer
• Evaporator Plate  - Flat 1000x 270mm
• 12/24V

Specifications

• Capacity: 86L Freezer
• Evaporator: Flat Plate 1000mm x 270mm
• Compressor: Air Cooled Danfoss BD50F
• Dimensions: (LxWxH): 330 x 160 x 175mm
• Voltage: 12/24v
• Gas R134
• Certifications: Compliant with relevant marine and electrical standards (e.g., CE, ISO)
• Weight: 12kg
• Warranty: 2 years
• Part number: U000X086P13111AA
