Jabsco 1 1/2'' Magnetic Clutch Bronze Pump - Double Pulley/Flanged Ports - 12V (5A)

Jabsco Electro Magnetic 1 1/2" Clutch Pumps 12 V Pulley Double 'A' - Flanged Ports 2-size, foot-mounted with flanged ports 12 V DC electric clutch with 2A pulley.

Features

• Heavy duty bilge and deck wash pump
• BSP threaded port adapters available
• Bronze body, stainless steel shaft
• Can handle moderate amounts of suspended solid matter
• Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water
• Constructed from marine quality bronze and stainless steel
• Easy to service and maintain
• Will tolerate abrasive wear
• Handles hard and soft solids without clogging
• Can pump in either direction
• Will not airlock

Specifications

• Maximum flow rate: 43 GPM (195 LPM)
• Self-priming: Up to 15' (4.5 m)
• Maximum head: 75' (23 m)
• Maximum power: 1800 W @ 1500 rpm
• DC voltage: 12V
• Fuse size: 5A
• Pump size: 200
• Shaft seal type: Mechanical, carbon-ceramic
• Bearing type: Twin single row ball
• Clutch type: Electro-magnetic
• Port type: BSP
• Port size: 1 1/2" (38 mm)
• Mount type: Foot
• Length: 9 1/2"" (23.9 cm)
• Width: 6" (15.3 cm)
• Height: 7" (17.8 cm)
• Weight: 25 lb (11.2 kg)

Material of Construction

• Body material: Bronze
• Impeller material: Neoprene
• Shaft material: 316 Stainless steel

The Jabsco Bronze Pump 50220-0011 Service Parts

• Service Kit - SK407-0011
• End Cover Screw - SP1095-0640
• Gasket/O-Ring - 816
• Impeller - 17935-0001
• Water Seal - 21849

Spare Parts and Accessories

• Vacuum switch
• Port Adapter Kit
• Impeller
• Service Kit
• 1 1/2" Hose Adapter
• Impeller removal tool: 200/270/370/470/500 size pumps

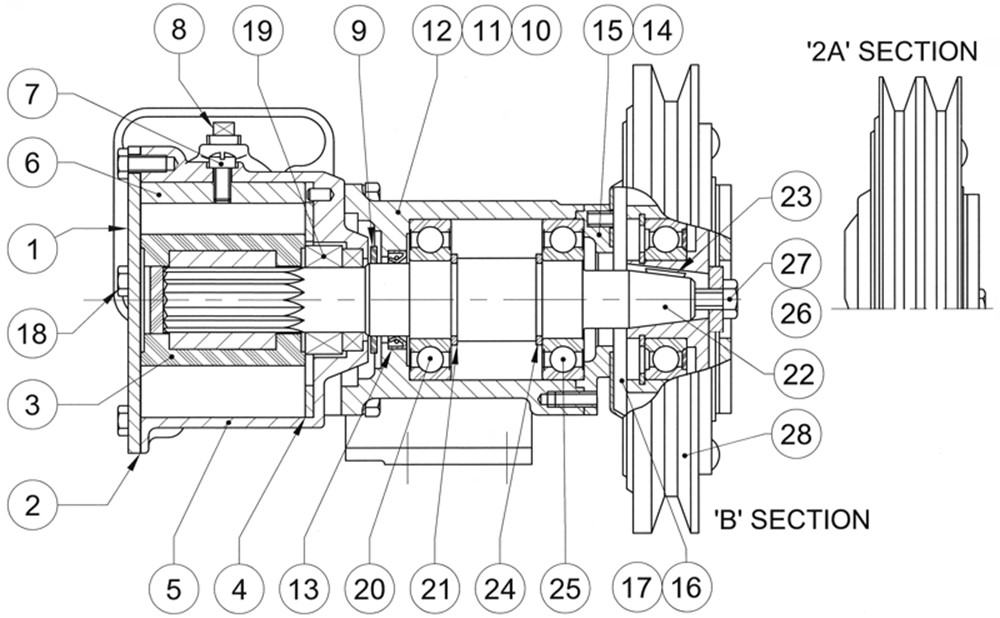

Drawing and Specifications

Technical Files

Datasheet

Maintenance Instructions
