Description
Jabsco Engine Cooling Pump 29500-1501.
Flange mount - Size 40 (1.1").
Specifications
- Pump size: 40
- Mount type: Flange
- Port type: Hose
- Port size: 1.1" (28 mm)
- Weight: 1.32 kg
Service Kits and Common Parts
- Service Kit - JSK384-0001
- Gasket/O-Ring - J3298
- Impeller - J1210-0001
- Water Seal - JSP2700-1027
- End Cover Screws - JSP1002-02

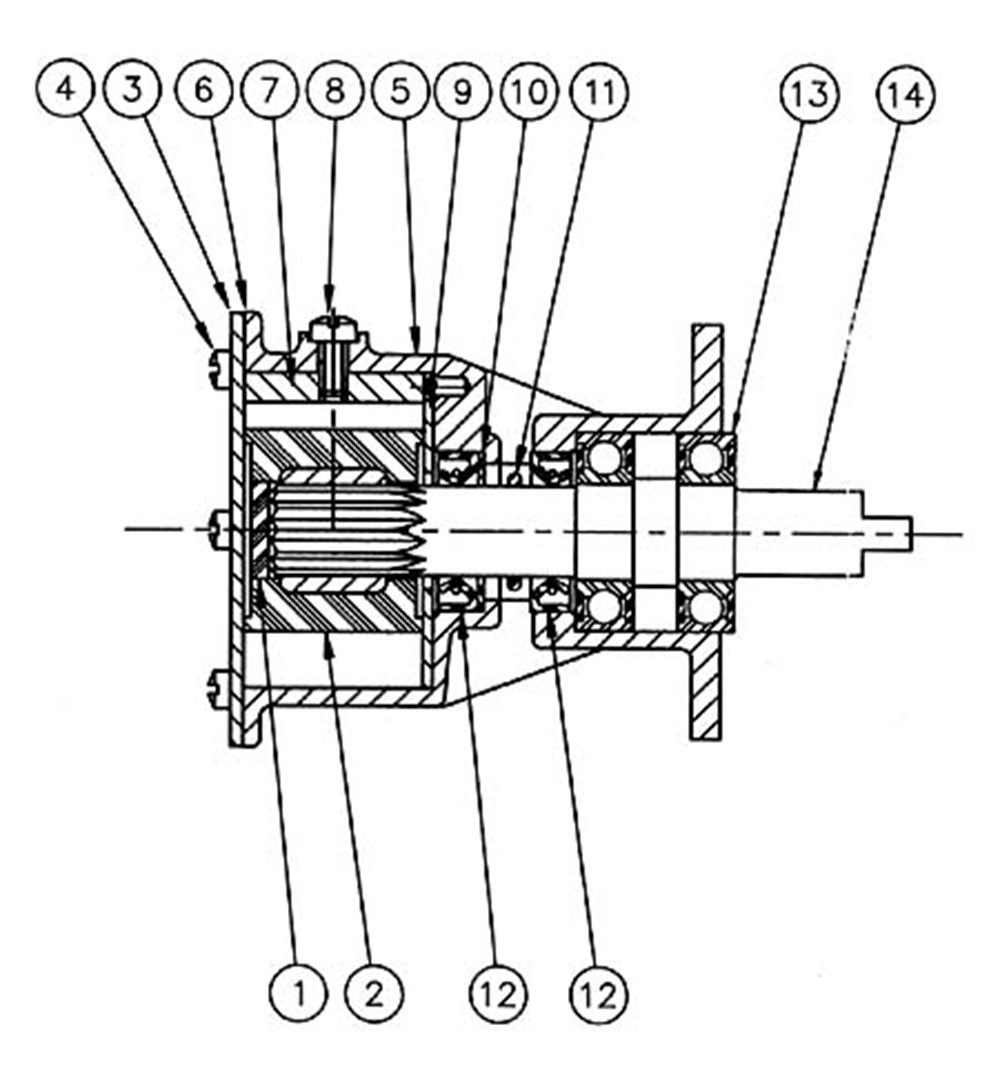

Drawing and Specifications
| Item | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spline Plug (3 Pack) | 4345-0000 | 1 |
| 2 | Impeller & Gasket Kit | 1210-0001-P | 1 |
| 3 | End Cover | 11830-0000 | 1 |
| 4 | Screw (3 Pack) | 91002-0020 | 6 |
| 6 | Gasket | 3298-0000 | 1 |
| 7 | Cam | 490-0001 | 1 |
| 8 | Screw (3 Pack) | 91003-0010 | 1 |
| 9 | Wear Plate | 7883-0000 | 1 |
| 10 | Spacer | 23431-0000 | 1 |
| 11 | O-Ring | X4020-215A | 1 |
| 12 | Seal | SP2700-1027B | 2 |
| 13 | Bearing | SP2601-0451B | 2 |
| 14 | Shaft | 29516-0000 | 1 |
| - | Service Kit | SK384-0001 | 1 |
