Jabsco
Jabsco Engine Cooling Pump - Size 80 (1.25") - Model 29600-1001
- SKU:
- J29600-1001
- UPC:
- 671880549103
Description
Jabsco Engine Cooling Pump 29600-1001.
Flange mount - Size 80 (1.25").
Specifications
- Pump size: 80
- Mount type: Flange
- Port Type: Hose
- Port size: 1.25" (32 mm)
- Weight: 2.54 kg
Service Kits and Common Parts
- Service Kit - JSK385-0101
- Gasket/O-Ring - J890
- Impeller - J17937-0001
- Water Seal - JSP6080-0469
- End Cover Screws - JSP1003-0111

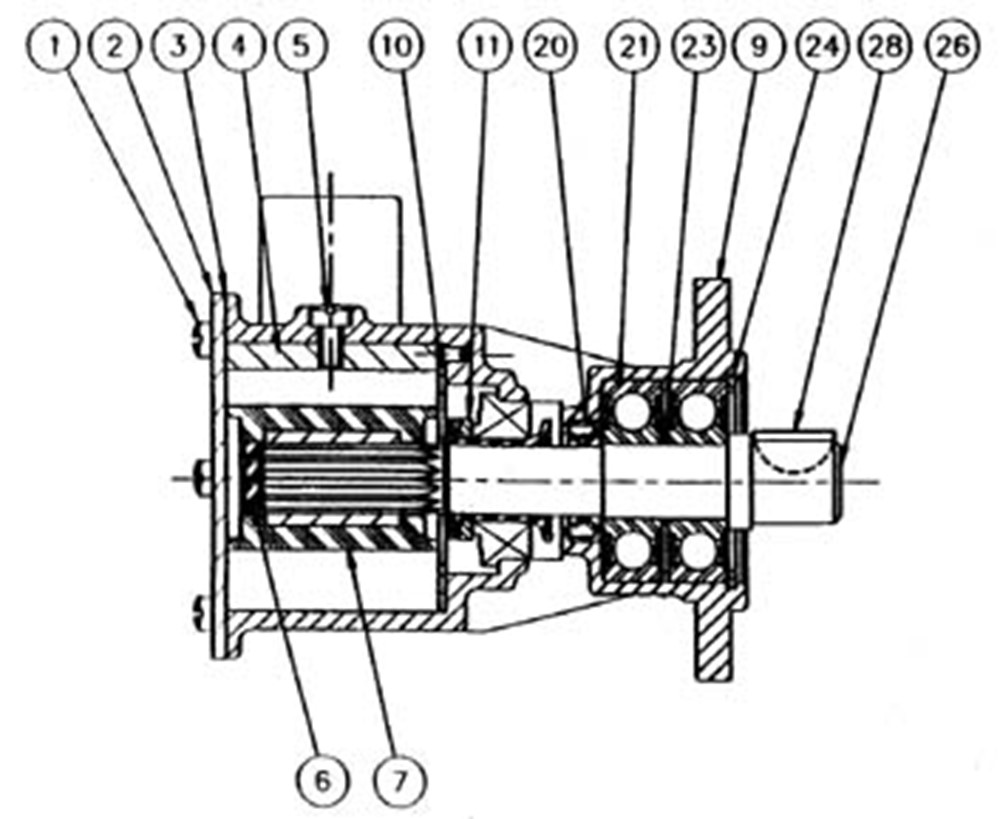

Drawing and Specifications
| Item | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Screw | SP1003-011 | 6 |
| 2 | End Cover | 11831-0000 | 1 |
| 3 | Gasket | 890-0000 | 1 |
| 4 | Cam | 934-0000 | 1 |
| 5 | Screw (3 Pack) | 91004-0090 | 1 |
| 6 | Spline Plug (3 Pack) | 4345-0000 | 1 |
| 7 | Impeller & Gasket Kit | 17937-0001-P | 1 |
| 10 | Wear Plate | 4156-0000 | 1 |
| 11 | Seal Assembly | 22646-0000B | 1 |
| 20 | Seal | SP2700-1027B | 1 |
| 21 | Bearing | 92600-0500 | 2 |
| 23 | Retaining Ring | SP1701-4437 | 1 |
| 24 | Retaining Ring | SP1701-438 | 1 |
| 26 | Shaft | 29607-0000 | 1 |
| - | Service Kit | SK385-0101 | 1 |
