Description
Jabsco Engine Cooling Pump 9700-01.
Flange mount - Size 80 (1").
Marine engine cooling pump for
- Hamworthy
- Perkins
- Leyland-Thornycroft
Specifications
- Pump size: 80
- Mount type: Flanged
- Drive type: Coupling
- Port size: 1" (25 mm)
- Length: 5 3/4" (14.9 cm)
- Width: 4 3/4" (12.1 cm)
- Height: 3 7/8" (9.9 cm)
- Weight: 6 lb (2.8 kg)
Service Kits and Common Parts
- Service Kit - JSK238
- Gasket/O-Ring - J890
- Impeller - J17937-0001
- Water Seal - J22645-0000
- End Cover Screws - JSP1003-01
Spare Parts and Accessories
- Impeller & Gasket Kit
- Service Kit
- Impeller removal tool: 040/080/120- size pumps

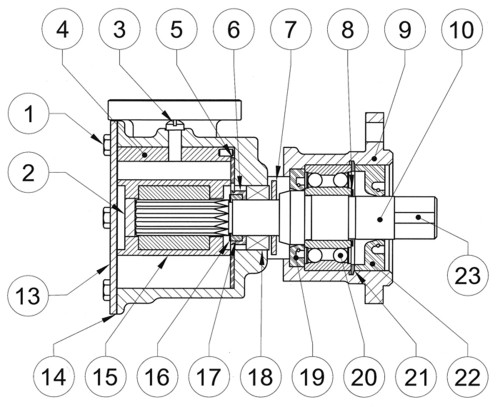

Drawing and Specifications
| Item | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Screw (3 Pack) | 91003-0010 | 6 |
| 2 | Spline Plug (3 Pack) | 4345-0000 | 1 |
| 3 | Screw (3 Pack) | 91004-0090 | 1 |
| 4 | Cam | 934-0000 | 1 |
| 5 | Wearplate | 4156-0000 | 1 |
| 7 | Slinger (3 Pack) | 3180-0000 | 1 |
| 8 | Retaining Ring (3 Pack) | 18713-0000 | 1 |
| 10 | Shaft | 9707 | 1 |
| 13 | End Cover | 11831-0000 | 1 |
| 14 | Gasket | 890-0000 | 1 |
| 15 | Impeller & Gasket Kit | 17937-0001-P | 1 |
| 16 | Retaining Ring (3 Pack) | 91700-0620 | 1 |
| 18 | Seal Assembly | 22645-0000 | 1 |
| 19 | Seal | 913-0000 | 1 |
| 20 | Bearing | 92600-0060 | 1 |
| 21 | Retaining Ring | SP1701-185 | 1 |
| 23 | Key | SP1402-01 | 1 |
| - | Service Kit | SK238 | 1 |
| - | Dowel Pin | SP3100-10 | 1 |
Download
