Jabsco Par Max HD3 Water Pressure Pump -12V 60PSI

SKU:
JQ301J-118S-3A
MPN:
Q301J-118S-3A
  • Jabsco Par Max HD3 Water Pressure Pump -12V - 60PSI
  • Jabsco Par Max HD3 Water Pressure Pump -12V - Model Q301J‐118S‐3A
€239.95
Frequently bought together:

Description

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of exceptional service in applications both large and small. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing to improve pressure capability and life

All Par Max Pump are now supplied with a Pump Guard Strainer

Feature

  • 11 LPM (3 GPM)
  • Co-molded diaphragm technology for long life and durability
  • HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Runs Dry Without Damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Equipped with integrated bypass module to reduce cycling and provide smoother flow

In the Box

Pump Unit: Jabsco PARMAX HD3 12V 3GPM ( 11 LPM) 60PSI Pump

Port Fittings: 2 x 1/2" (13mm) Straight Hose barb

Strainer: Inline Quick Connect Strainer 40 Mesh

Specifications

  • Self-Priming: Up to 2.40 m (8ft)
  • Flow output: 3 GPM (11 LPM)
  • Fitting straight hose barbs (Two): 1/2" (13 mm)
  • Pressure switch cuts out at: 4.1 bar (60 psi)
  • Max Inlet Pressure: 2.1 bar ( 30)PSI
  • Nominal Voltage: 12 VDC
  • Voltage Range: 9 VDC ‐ 13.6 VDC
  • Max Current Draw: 9 Amps
  • Fuse Size: 15 Amps - Not included
  • Leads: 12" (305mm), 14 AWG (2.5mm^2)
  • IP Rating: IPX6

Typical Installation

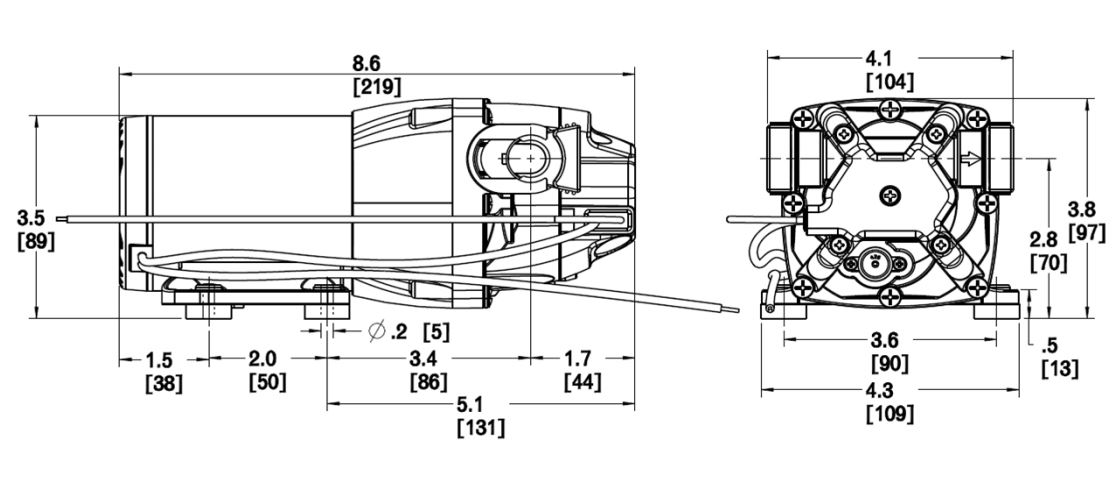

Dimensions
