Jabsco Par Max HD6 Heavy Duty Water Pressure Pump 40PSI - 12 Volt

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of exceptional service in applications both large and small. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing to improve pressure capability and life

The Jabsco Par Max HD6 is a very high capacity fresh water pressure pump delivering 23 lpm at 40 PSI. This model is suitable for larger vessels with 2 Showers and up to a total of 6 outlets -The HD6 is equipped with a bypass, which enables smoother flow and decreases cycling.

All Par Max Pump are now supplied with a Pump Guard Strainer

Feature

• 23 LPM (6 GPM) - Is Jabsco largest and most powerful water pressure pump, great for those long runs!
• Co-molded diaphragm technology for long life and durability
• HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Runs Dry Without Damage
• Self‐Priming
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

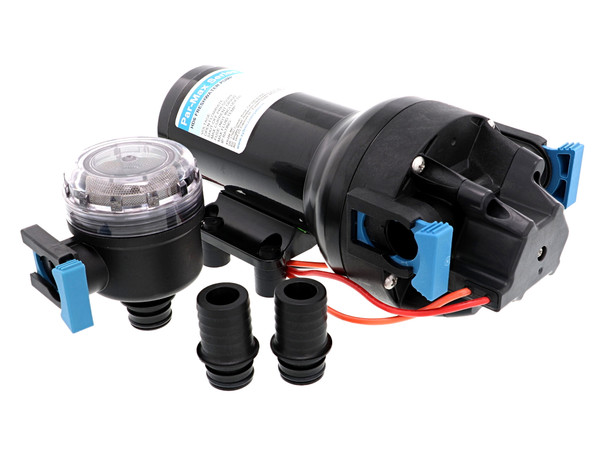

In the Box

• Pump Unit: Jabsco PARMAX HD6 12V 6GPM ( 23 LPM) 40PSI Pump
• Port Fittings: 2 x 3/4" ( 20mm)Straight Hose barbs
• Strainer: 90 Degree Quick Connect; 40 mesh

Specifications

• Self-Priming: Up to 7ft (2.1m) dry prime
• Flow output: 5GPM (15 LPM)
• Fitting straight hose barbs (Two): 3/4" (20 mm)
• Pressure switch cuts out at: 2.8 bar (40 psi)
• Max Inlet Pressure: 2.1 bar ( 30)PSI

• Nominal Voltage: 12 VDC

• Voltage Range: 9 VDC ‐ 13.6 VDC
• Max Current Draw: 15 Amps
• Fuse Sizes: 25 Amps - Not included
• Leads: 12" (305mm), 14 AWG (2.5mm^2)
• Internal Bypass: Yes
• IP Rating: IPX6

Typical Installation

Dimensions
