Description
Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
FishReveal™

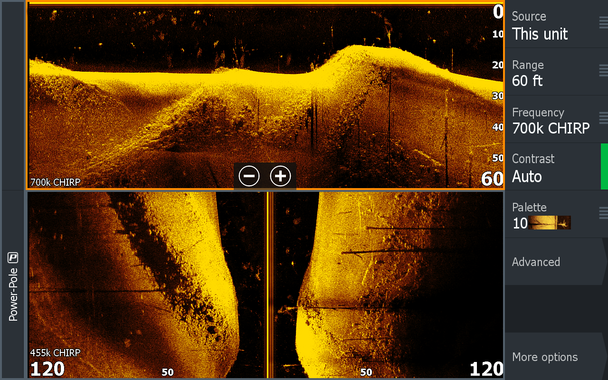

Get the best of Lowrance® CHIRP sonar and DownScan Imaging™ on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Designed for Clarity
The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
Key Features
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- Lowrance® CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays
Specifications
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
|---|
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
|---|---|
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C ) |
| Waterproof rating | IP67 |
| Dimensions (W x H x D) | #NAME? |
|---|---|
| Mounting Type | Transducer: Bracket Mount |
| Weight | Transducer: 2.67 lbs (1.21 kg) |
| Frequencies | CHIRP: High CHIRP Medium CHIRP Broadband: 83 kHz 200 kHz Active Imaging HD: SideScan: Low CHIRP: 455 kHz (445 kHz - 495 kHz) High CHIRP: 1075 kHz (1065 kHz - 1115 kHz) DownScan: Low CHIRP: 700 kHz (690 kHz - 740 kHz) High CHIRP: 1200 kHz (1190 kHz - 1240 kHz) |
|---|---|
| Max Depth | 2D Sonar: Broadband/CHIRP: 200 kHz/High CHIRP - 500' (152.4m) 83 kHz/Medium CHIRP - 1000' (304.8m) SideScan: High Frequency: 150' (45.72m) Low Frequency: 300' (91.44m) DownScan: High Frequency: 150' (45.72m) Low Frequency: 300' (91.44m) |
| Warranty Period | 1 Year + 4 additional years of upgrade options Totaling 5 years |
|---|---|
| Interface | Direct Connect to: HDS Pro S3100 Ethernet to: *HDS Live *Elite FS * Requires S3100 Module |
