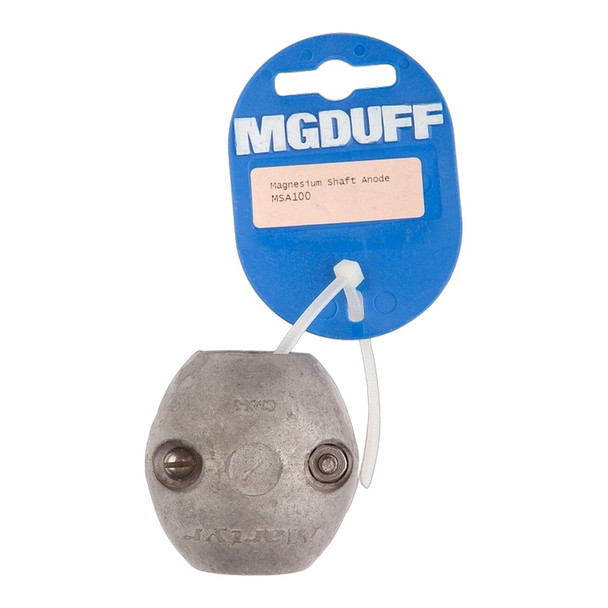

MGDuff Magnesium Shaft Anode 1" MSA100

Fresh water


MGDuff Magnesium Shaft Anode 1" are designed for imperial sized shafts only because 1" is 25.4mm in reality for fresh water use

Shaft anode incorporating a mild steel core bar to control anode wastage and prevent the anode from shaking free as it is consumed.

Drive shaft diameter: 1" or 25.4mm
MGDuff part no: MSA100
Material: Magnesium for freshwater boats
Length: 55mm
Width: 55mm
Depth: 55mm

1. Choose your material:
- Zinc for saltwater boats
- Aluminium for saltwater or brackish waters
- Magnesium for fresh water
2. Select Style and Model:
- Bolt-on hull anodes come with 8" or 9" hole centres (You have to buy the studs or bolts separately) weld-on requires the anode to be welded in place (usually commercial vessels)
- There are different models of anode depending on where you put it. Shaft and beneteau anodes protect the drive shaft and stern tube. Hull anodes can be placed anywhere depending on where you want to protect and pencil/engine anodes tend to be specially designed for each brand and model engine. Button or disc anodes are designed to protect rudder / trim tabs.

*For more information on placement or engine anodes please contact us on 00353 28 23190.

**With regard to steel boats, it is vital that special attention is paid to areas around the water line. These are particularly vulnerable but receive no protection from anodes above the water line.

***All MGDuff anodes will suit wood, GRP or steel hulls. For aluminium hull anodes please contact one of our branches.


High spec MGDuff Magnesium Anodes for leisure and commercial vessels.

Copper: CU 0.08
Aluminium: AL 5.3-6.7
Silicone: Si 0.3 Max
Iron: Fe 0.005 Max
Manganese: Mn 0.025
Nickel Ni 0.003 Max
Lead: Pb 0.03
Magnesium: Mg Remainder
Potential Ag/AgCl -1.5v 1230
