Description

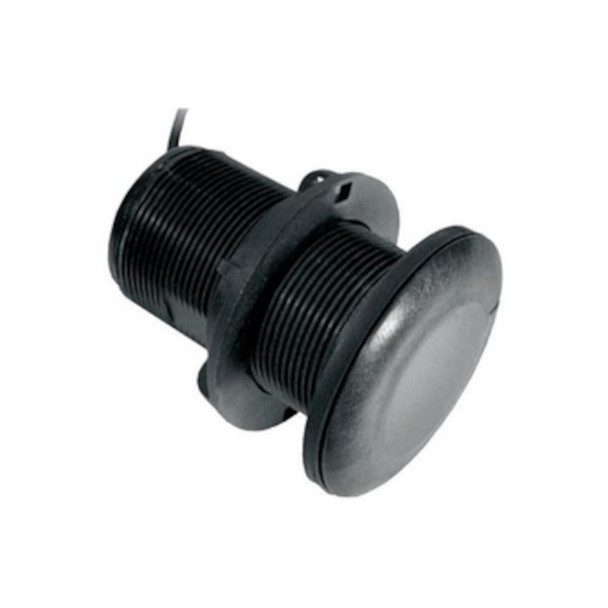

- NMEA 2000 Depth/Temperature sensor with zero-degree (untilted) element.
- Includes a 51mm (2") plastic flanged through-hull housing.
- Sensor uses standard PGNs and comes with Micro-C connectors enabling easy connection to an NMEA2000 backbone.
- This sensor does not have a speed sensor connection
Specifications
Connectivity
| N2K PGNs | 59392. 600928, 126208, 126464, 126996, 128267, 130310, 130311, 130312 |
|---|---|
| NMEA 2000 | 1 x NMEA® 2000 Micro-C lead (2m cable) , 4 LEN |
Physical
| Mounting Type | Thru Hull |
|---|---|
| Weight | 0.9 kg (2.0 lbs) |
Sonar
| Frequencies | 235 KHz |
|---|---|
| Max Depth | Up to 180m (590') |
| Output power | 100 W |
FAQs
1. Does this NMEA 2000 sensor offer both depth and temperature readings?
Yes, it offers readings on water depth and temperature using zero degree untitled sensor element.
2. Is this sensor NMEA 2000 compatible?
Yes, it uses NMEA 2000 PGNs and also comes with Micro-C connector with a 2m cable that makes it easier to connect to NMEA 2000 backbone.
3. Is there a thru-hull mount housing included with this NMEA 2000 sensor?
Yes, it includes a 51mm (2inch) plastic flanged thru-hull housing.
4. What is the maximum depth this NMEA 2000 sensor supports?
Yes, this sensor can measure depths up to 180 meters (590 feet) with a frequency of 235 kHz and 100W output power.
5. Does this sensor offer speed reading?
Yes, this sensor offers depth and temperature readings but there is no speed sensor included with this sensor.
